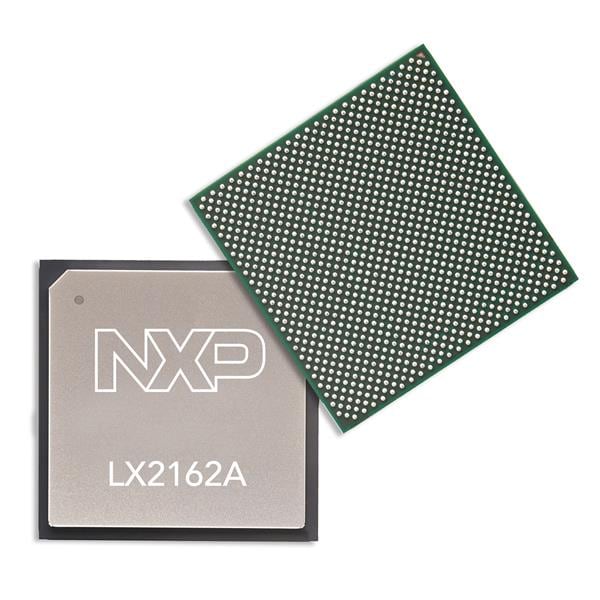

NXP LX2122RC82029B Microprocessors - MPU Layerscape 64-bit Arm Cortex-A72, 12-core, 2.0GHz, Indoor spec, Security enabled, CAN-FD, 23x23 pkg

Core: ARM Cortex A72

Memory Type: DDR4 SDRAM

Data RAM Size: 256 kB

Data Bus Width: 64 bit

Interface Type: Ethernet, I2C, PCI-e, Serial, USB

Mounting Style: SMD/SMT

Number of I/Os: 101 I/O

Number of Cores: 12 Core

Watchdog Timers: Watchdog Timer

Processor Series: LX2162

Moisture Sensitive: Yes

L1 Cache Data Memory: 32 kB

Maximum Clock Frequency: 2 GHz

Operating Supply Voltage: 775 mV to 850 mV

Number of Timers/Counters: 2 Timer

L1 Cache Instruction Memory: 48 kB

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: + 5 C

L2 Cache Instruction / Data Memory: 6 MB
