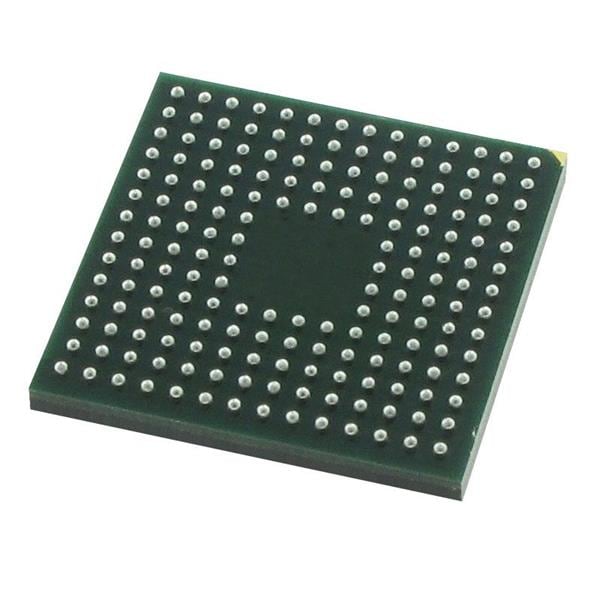

NXP LPC18S50FET180E MCUs 32-bit ARM Cortex-M3 flashless MCU with security features; 200 kB SRAM; Ethernet, two HS USB, LCD, EMC

Core: ARM Cortex M3

I/O Voltage: 2.2 V to 3.6 V

Unit Weight: 291.052 mg

Data RAM Size: 200 kB

Data RAM Type: SRAM

Data ROM Size: 64 kB

Data ROM Type: ROM

ADC Resolution: 10 bit

DAC Resolution: 10 bit

Data Bus Width: 32 bit

Interface Type: CAN, I2C, Ethernet, SPI, UART, USB

Mounting Style: SMD/SMT

Number of I/Os: 118 I/O

Watchdog Timers: Watchdog Timer

Processor Series: LPC18S50

Moisture Sensitive: Yes

Program Memory Size: 0 B

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.2 V

Analog Supply Voltage: 3.3 V

Number of ADC Channels: 8 Channel

Maximum Clock Frequency: 180 MHz

Number of Timers/Counters: 4 Timer

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
