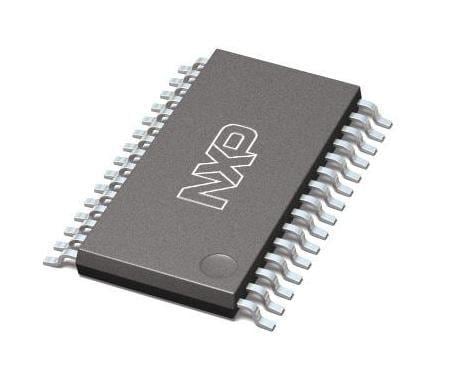

NXP LPC1114FDH28/102:5 MCU's CortexM0 32bit 32KB

Core: ARM Cortex M0

Unit Weight: 108.184 mg

Data RAM Size: 4 kB

Data RAM Type: SRAM

ADC Resolution: 10 bit

Data Bus Width: 32 bit

Interface Type: I2C, SPI, UART

Mounting Style: SMD/SMT

Number of I/Os: 22 I/O

Watchdog Timers: Watchdog Timer, Windowed

Processor Series: LPC1100L

Moisture Sensitive: Yes

Program Memory Size: 32 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.8 V

Number of ADC Channels: 6 Channel

Maximum Clock Frequency: 50 MHz

Operating Supply Voltage: 3.3 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
