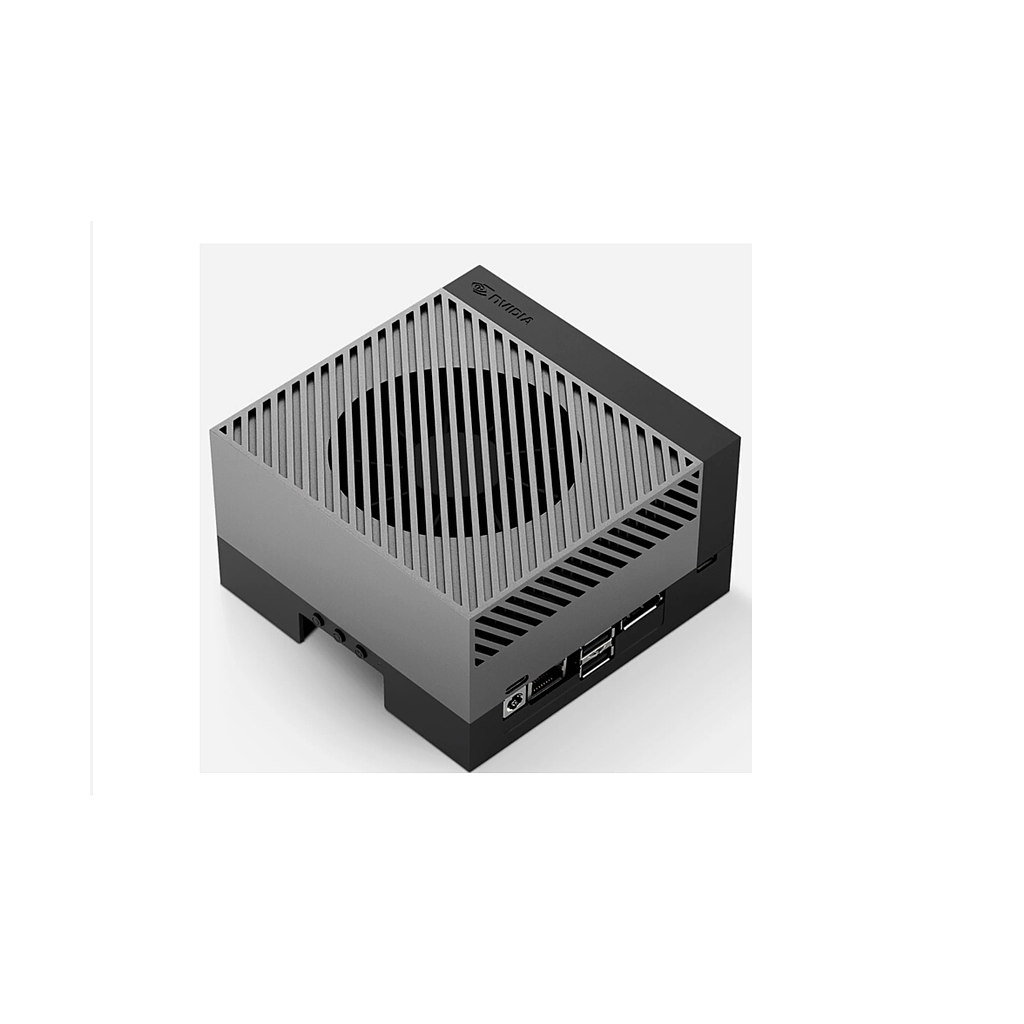

Nvidia Jetson AGX Orin 64GB Jetson AGX Orin Developer Kit

Jetson AGX Orin 64GB Module

GPU: NVIDIA Ampere architecture with 2048 NVIDIA CUDA® cores and 64 tensor cores

CPU: 12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3

DL Accelerator: 2x NVDLA v2.0

Vision Accelerator: PVA v2.0

Memory: 64GB 256-bit LPDDR5 204.8GB/s

Storage: 64GB eMMC 5.1

Video Encode: 2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265)

Video Decode: 1x 8K30 | 3x 4K60 | 7x 4K30 | 11x 1080p60 | 22x 1080p30 (H.265)

Power: 15W-60W

Reference Carrier Board

Camera: 16-lane MIPI CSI-2 connector

PCIe: x16 PCIe slot supporting: x8 PCIe Gen4

RJ45: Up to 10GbE

M.2 Key M: x4 PCIe Gen 4

M.2 Key E: x1 PCIe Gen 4, USB 2.0, UART, I2S

USB Type-C: 2x USB 3.2 Gen2

USB Type-A: 2x USB 3.2 Gen2, 2x USB 3.2 Gen1

USB Micro-B: USB 2.0

DisplayPort: DisplayPort 1.4a (+MST)

microSD slot: UHS-1 cards up to SDR104 mode

Dimensions: 110mm x 110mm x 71.65mm

(Height includes feet, carrier board, module, and thermal solution)
