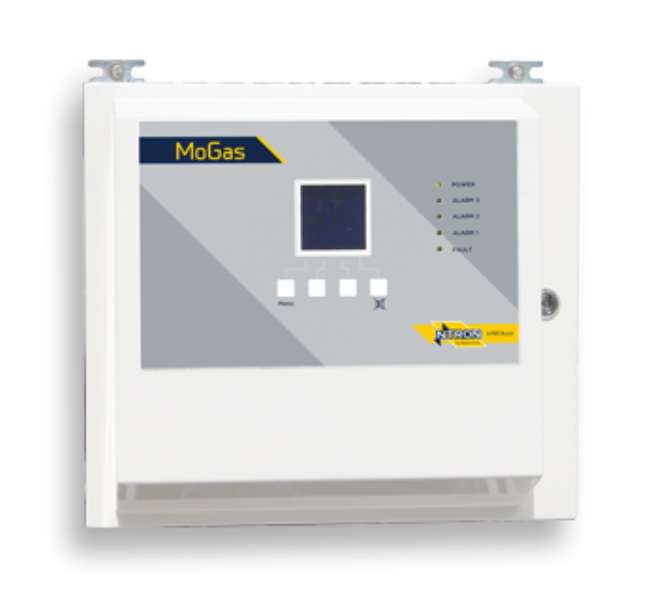

NTRON MoGas-2 Medical gas analyzer (Paramagnetic:0~100 %, 1/4'', O2 / CO / CO2)

Sensor type: O2/CO/CO2

Standard dimensions: 422mm (w) x 360mm (h) x 188mm (d)

Weight: 16 kg

Measurement ranges:  Paramagnetic (0...100 %)

Moisture option available

Power requirements: 100…240 V AC / 50…60 Hz power supply

Enclosure: Painted mild steel (RAL 9010)

Visual indication: LCD display

Alarm levels: Output 4…20 mA per channel. One common fault relay.

2 Alarm Contacts per Channel.

Sample gas: Positive pressure samples up to 10 barg within enclosure.

Sample connection: 1/4"

Electrical connections: Two-off M20 gland entry holes

User interface: 4-button multifunctional keypad

Temperature range: Overall operating: -20…+50°C

Environmental rating: IP65

Humidity range: 15 % to 95 % relative, non-condensing

Electromagnetic compatibility: CE marked and tested to EN61000-6-4; EN61000-6-2; EN55022; EN61000-3-3; EN61000-3-2
