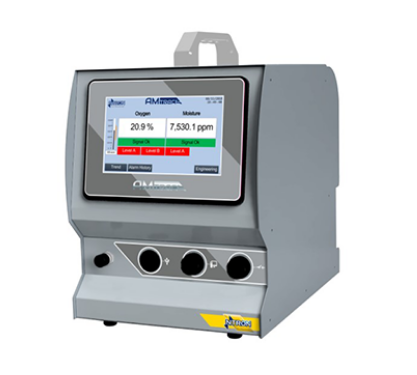

NTRON AM Trace Atmosphere Gas Portable Analyser (0 – 1000 PPM, 0 – 25%)

Measured gas / range: Oxygen / Dual Range 0 - 1000 PPM / 0 - 25%

Measured moisture range: -60°C to +20°C DP

Response time (T90) <15 seconds (oxygen)

Response time (T95): -60°C to -20°C dew point < 1 minute

Repeatability: ±0.5% of reading

Moisture repeatability: 0.5°C dew point

Power supply: 24VDC ±10%

Output Signal: 2 X 4 - 20mA (1 x oxygen / 1 x moisture)

Sample flow: 1 litre

Display: 7” Touchscreen colour display

Relay Output: 2 Relay Contacts per Channel

Communications: RS-485

Moisture Accuracy: ± 2°C dew point

Oxygen Accuracy: ± 2% of reading

Temperature range: 5°C to 40°C (Ambient)

Process Connection: 1/8“ BSP Input / Exhaust

Dimensions: 350mm (D) x 253.4mm (W) x 314mm (H) (excl. handle)

Weight: 8.5kg (approx 19lb)
