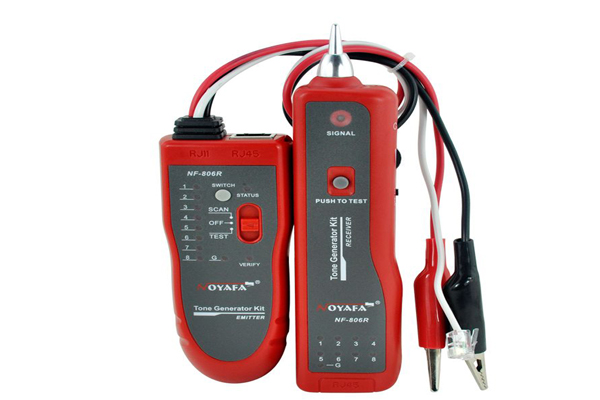

Noyafa NF806R Tone Generator Probe Kit

Transmitter

- Tone frequency: 1KHz

- Max. distance of transmission: Up to 2 kilometers

- Max. working current: Less than 10mA

- Volume regulate function: Audio volume level control

- Tone mode: 2 Tones, adjustable

- Compatible connectors: RJ45, cable clip with RJ11 connector

- Max. signal voltage: 8Vp-p

- LED lights display: Wiremap, tone, tracing

- Battery type: DC9.0V (NEDA 1604/6F22) x1pc

- Dimensions (LxWxD): 15x3.7x2cm

Receiver

- Frequency: 1KHz

- The Max. working current: Less than 30mA

- Earphone jack: 1

- Battery Type: DC9.0V (NEDA 1604/6F22) x1pc

- Dimensions (LxWxD): 12.2x4.5x2.3cm

Accessories

- Cable clips: 1set

- Telephone cable adaptor: 1set

- Network cable adaptor: 1 set

- Earphone: 1 set

- 9V battery: 2 sets (if required)

- User manual: 1 set

- Carry case: 1set

- Gift box: 1 set
