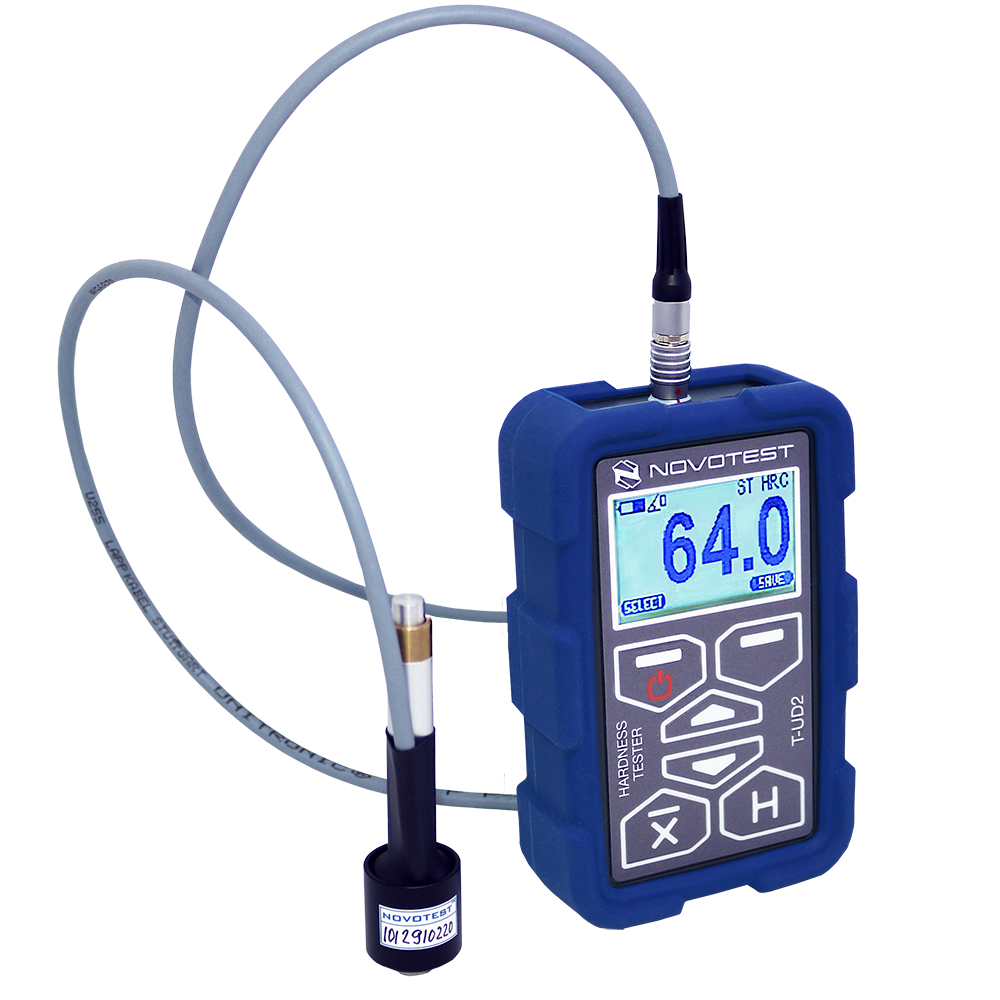

NOVOTEST T-D2-R Leeb Hardness Tester (20~70HRC; 90~650HB; 230~940HV)

Range of hardness value:

- Rockwell, HRC: 20 – 70

-Brinell, HB: 90 – 650

-Vickers, HV: 230 – 940

Measurement accuracy

-HRC: 2HRC

-HB: 10HB

-HV: 15HV

Hardness scale: Leeb probe – HRC, HB, HV, HL

Materials: Leeb probe – pre-calibrated for steel, alloy steel, stainless steel, aluminum or cast iron.

Standards: ASTM A956, ASTM E140

Storage of measurement results: 256

Language: English, Spanish, Portuguese, French, Russian

Dimensions, mm: 122*65*23

Operating temperature range, °C: -25 to +40

Power supply: 2pcs AA batteries

Batteries life, not less, h: 20

Weight of electronic unit with batteries, no more, kg: 0.2

Standard package:

- Hardness tester

-D1 dynamic DC-R-type probe

-AA batteries – 2 pcs

-Charger

-USB cable

-Operating manual

-Software for PC

-Case

Optional accessories:

- Batteries

-Charger

-Hardness calibrations blocks

-Portable grinding machine

-Case for hardness tester

Description:

- Leeb Hardness Tester NOVOTEST T-D2-R is a special version of the dynamic hardness tester with a miniature probe. The device has all the functions necessary for operation and allows to perform rapid measurements of the hardness of metals to the operator without experience with similar equipment.

- It is usually used for bulk products, has low requirements for the quality of the testeded surface, grain size and uniformity of materials.

Advantages:

- The best price among all similar devices

- The best offer (functionality-quality-price ratio) among all dynamic hardness testers

- DC type probe is the most universal, due to it’s small size, it can be used for testing of samples with limited access (inside pipes, etc.)

- Wide range of hardness measurement

- Allows to test the products with coarse, non-uniform structure (castings, forgings)

- Very ease and simplicity in setup and operation

- Wide range of the operation temperature

- Bright contrasrt display

User can save the results of hardness measurements into the internal memory of the device and after that, transfer them to the PC.

Datasheet
