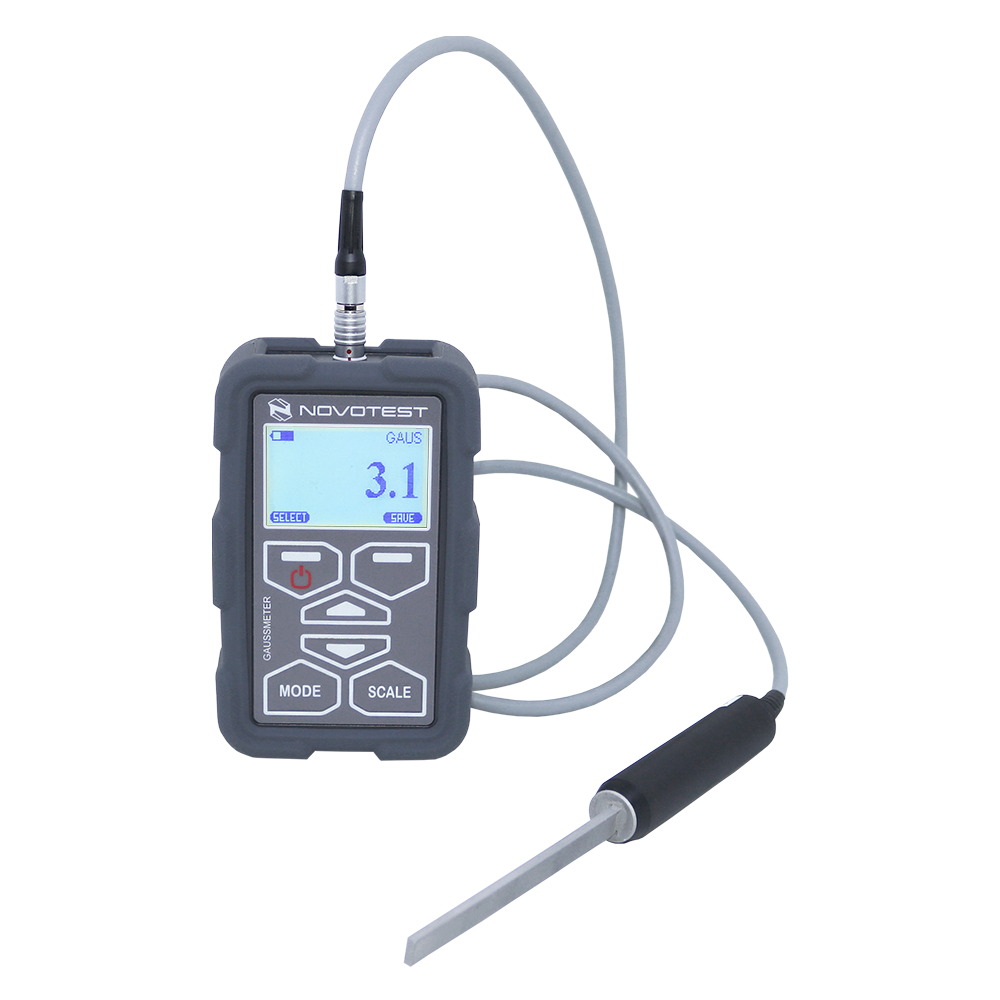

NOVOTEST MF-1M Magnetometer (±100G~±3000G)

The measurement range depends on the probe, G:

– PH-100: ± 100G

– PH-1000: ± 1000G

– PH-3000: ± 3000G

Measurement accuracy of the probes:

– PH-100: ±(1G+5%)

– PH-1000: ±(2G+5%)

– PH-3000: ±(5G+5%)

Scales: Ampere/Centimeter (A/cm); Gauss (Gs); Tesla (mT)

Response time, no more: 1s

Overall dimensions, mm: 120x75x36

Operating temperature, °C: -20 to +40

Power supply: 2pcs AA batteries

Weight of electronic unit with batteries, kg, no more: 0.25

Standard package:

- Probe

- Batteries AA type 2 pcs

- Charger

- USB cable

- Operating manual

- Case

Optional accessories:

- Probes (Axial and/or Transverse type)

- Charger

- Magnetic test samples

Description

Magnetometer NOVOTEST MF-1M is designed to control the residual magnetization and study the magnetic heterogeneity of the surface of ferromagnetic products, to control the level of residual magnetization before welding gas and oil pipes, to control the induction of static (DC), alternating (AC) and pulsed magnetic fields generated by various magnetic and electromagnetic devices, such as magnetic particle flaw detectors, magnetic tables and chucks of grinding machines, demagnetizing devices, permanent magnets etc.

Advantages:

- Simplicity and convenience of measurements

- Friendly menu

- Static (DC), alternating (AC) and pulsed magnetic fields

- Several units of measure

- Wide range of measurement

- Different types of probes

- Robust and shockproof housing
