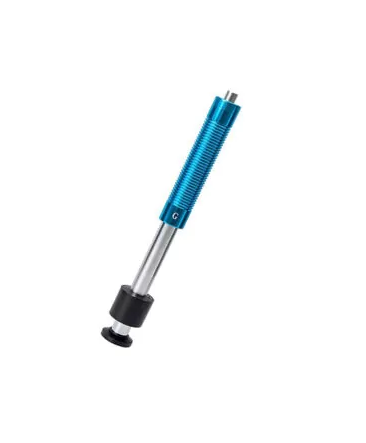

NOVOTEST Leeb G Dynamic Leeb Probe (370~1740 MPa)

Application:For measurements of solid components. e.g. heavy castings and forgings

Indenter type:Tungsten carbide

Test object requirements

+ Minimum sample weight:

Of compact shape: 15 kg (33 lbs).

On solid support: 5 kg (11 lbs).

Coupled on plate: 0.5 kg (1.1 lbs).

+ Minimum sample thickness:

Uncoupled: 70 mm (2.73 inches).

Coupled: 10 mm (0.4 inches).

+ Material: low, fine and medium grained ferrous and non-ferrous metals

Measuring range

HLG: 300-800

HRC: 20~61

HB: 90~650

HV: 230~800

Tensile strength, MPa: 370~1740

User calibrations for any range (for example: HV10-940)

Measurement accuracy

HLG: ±10

HRC: ±2

HB: ±10

HV: ±15

Scales

Precalibrated for HRC, HRA, HRB, HB, HV, MPA

Can be calibrated for any other (Shore HS, etc.)

Materials

Precalibrated for steel, alloy steel, cast iron, stainless steel, aluminum, bronze, brass, copper

Can be calibrated for any other

Standard:ASTM A956

Compatible models:T-UD3 (Lab), T-D3 (Lab), T-UD2 (Lab), T-D2 (Lab)

Operating environment

Temperature: -20°C ~ 50°C

Humidity: 30% ~ 80% R.H

Weight (with cable), g:255

Dimensions, mm:254*30
