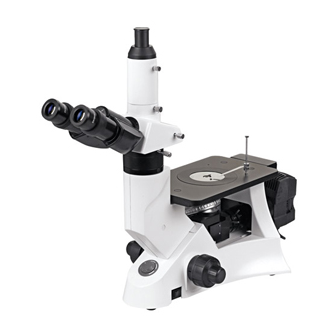

Novel NIM-100 Metallurgical Microscope (Trinocular,30°,48-75mm,EW10×/ 20)

Viewing Head: Trinocular head inclined at 30°, Interpupillary 48-75mm

Eyepiece: High-point, Extra wide field eyepiece EW10×/ 20

Infinitive Plan Achromatic Objectives:

• 4×/0.1

• 10×/0.25

• 20×/0.4

• 40×/0.6

Nosepiece: Quadruple nosepiece

Stage: Plain stage with slide clips

Focusing:

• Coaxial fine & coarse adjustment

• Vertical objective movement

• Coarse stroke: 37.7mmper rotation

• Fine stroke: 0.2mm per rotation

Illumination: Halogen lamp 6V/ 30W, Kohler illumination

Filter: Blue, Green, Yellow, Ground glass
