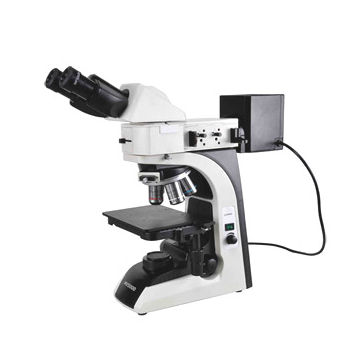

Novel MV5000R Metallurgical Microscope (binocular,30°,EW10×/20,186×138mm)

Optical System: Infinite optical system

Extra Wide Field Eyepiece: EW10×/20 Eyepiece with scale of cross hair

Infinite Plan Achromatic Objective:

5×/0.12/∞/- (BF/DF), LWD 10mm

10×/0.25/∞/-(BF/DF), LWD 10mm

20×/0.4/∞/0(BF/DF), LWD 5mm

50×/0.75/∞/0(BF/DF), LWD 1.3mm

100×/0.90(Dry)/∞/0(BF) LWD 0.7mm

Viewing Head: Siedentopf binocular viewing head, inclined at 30°

Kohler Incident Light

- 12V/50W Halogen light, Center and brightness adjustable

- Polarizer and analyzer

- Green, Blue, Yellow, Gray and ground glass

Focusing: Coaxial coarse and fine adjustment, fine division 2μm, moving range30mm

Nosepiece: Backward quintuple nosepiece

Stage: Double layer mechanical stage 186×138mm, Moving range 78mm×54mm

Accessories: Micrometer scale 0.01mm
