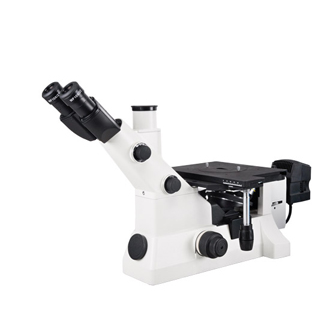

Novel MR5000 Metallurgical Microscope (binocular,30°,EW10×/20,48mm-75mm)

Optical System: Infinite optical system

Viewing head: Siedentopf binocular viewing head, Inclined at 30°, Interpupillary 48mm-75mm

Extra Wide Field Eyepiece: EW10×/20 Eyepiece with scale of cross hair

Infinite LWD Plan Achromatic Objective:

5×/0.12/∞/- (BF/DF), LWD 10mm

10×/0.25/∞/-(BF/DF), LWD 10mm

20×/0.4/∞/0(BF/DF), LWD 5mm

50×/0.75/∞/0(BF/DF), LWD 1.3mm

100×/0.90(Dry)/∞/0(BF), LWD 0.7mm

Kohler Incident Light:

• 12V/50W Halogen light, Center and brightness adjustable

• Polarizer and analyzer

• Green, Blue, Yellow, Gray and ground glass

Focusing: Coaxial coarse and fine adjustment, fine division 2μm

Nosepiece: Backward quintuple nosepiece

Stage: Φ16, Φ40, Teardrop

Accessories:

• 0.01mm Micrometer scale 0.01mm

• Lamp House Adjustment Objective
