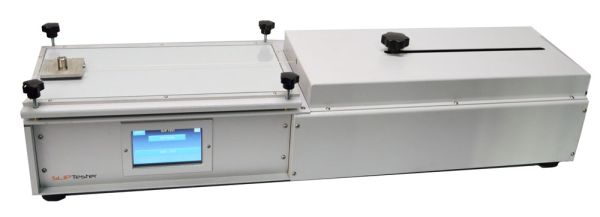

NOSELAB ATS SLIP tester Slip Properties Tester

Touch screen keyboard for directional command operations

Slide moved by a high precision dynamometric system; dimensions: 63.5 × 63.5 mm

Specimen support surface in tempered glass 200 × 400 mm, equipped with variable height support

Measurement of the force necessary to obtain the sliding of the slide by means of the load cell with capacity of gr 2000; accuracy ± gr 1

Motorized device for sliding the slide at a uniform and constant speed of 150 ± 30 mm/min; end stop and quick release system of the slide

Power supply: 230 single-phase 50/60 Hz, 30 VA

Dimensions: 950 × 260 × 240 mm (h)

Weight: 30 kg

Datasheet
