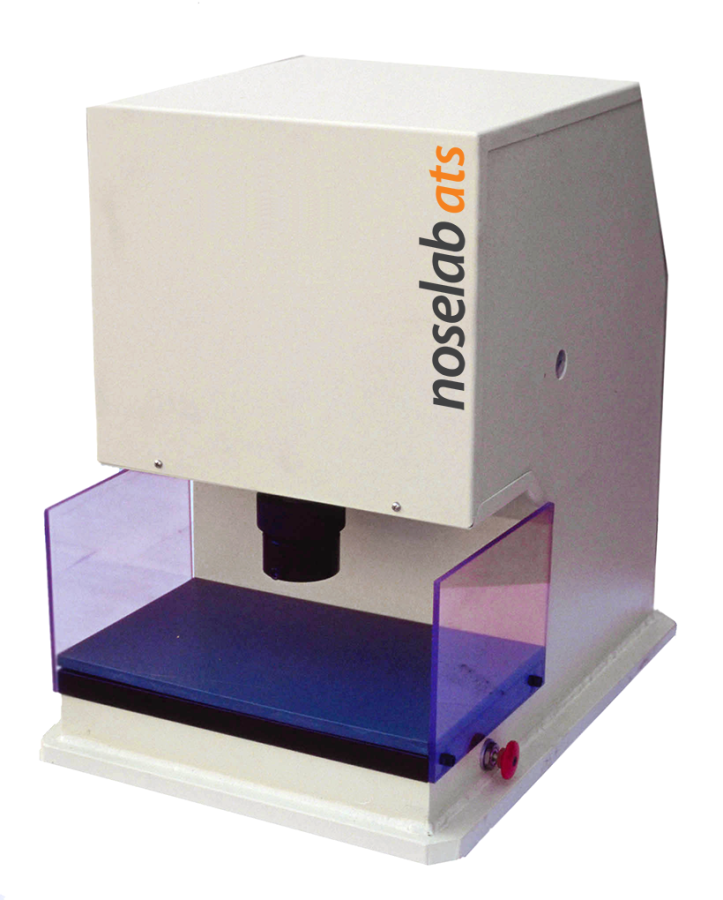

NOSELAB ATS PNEUMATIC DIE CUTTER Pneumatic die cutter

Dimensions of the sample holder plate (WxD) mm 320 x 200

Force on the die head axis 55 kN (with 6 bar air pressure)

Max cutting thickness approx. mm 16

Max stroke of the die head mm 30

Max useful clearance between die head and sample plate mm 70

Grounded worktop screwed in the mainframe, interchangeable with worktops having different sizes

Adjustable die head support, suitable for 25 mm dia. connections; smaller connections may be inserted with spacers, available on request

2-push-button control positioned under the worktop, easy to reach and dust-free design

Safety cutting operations are possible only by simultaneously pressing the two side push-buttons

Plastic cover for worktop included

Overall dimensions (WxDxH) mm 500 x 370 x 510

Weight approx. 130 Kg

Supply 6 bar industrial air
