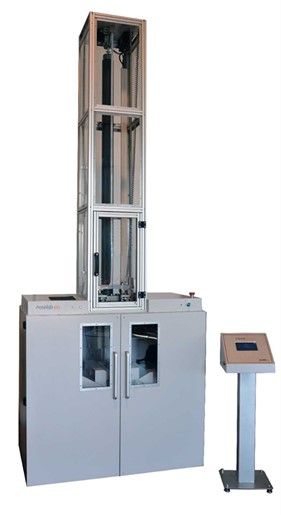

NOSELAB ATS PIPER DART 900 Dart impact test (Ø120 mm ~ Ø900 mm)

The gravity drop tower for performing high energy impulse impact testing is ideal for product development and quality control within manufacturing, research and development labs and teaching institutes, and will broadly meet the requirements of tests. Smaller drop heights are available

Specimens: Ø120 mm to Ø900 mm

Drop height: 50–2000 mm, ±2 mm

Energy loss: < 0.25%

Striker: 0.25–16 kg, tolerance ±0.5%

Reference Standards

ISO 3127 (EN 744)

ISO 11173

CEI 61386

Generals

Dimensions: 1400 × 700 × 3400 mm

Weight: 300 kg

Power: 230 V, 50 Hz

Max pneumatic pressure: 8 bar
