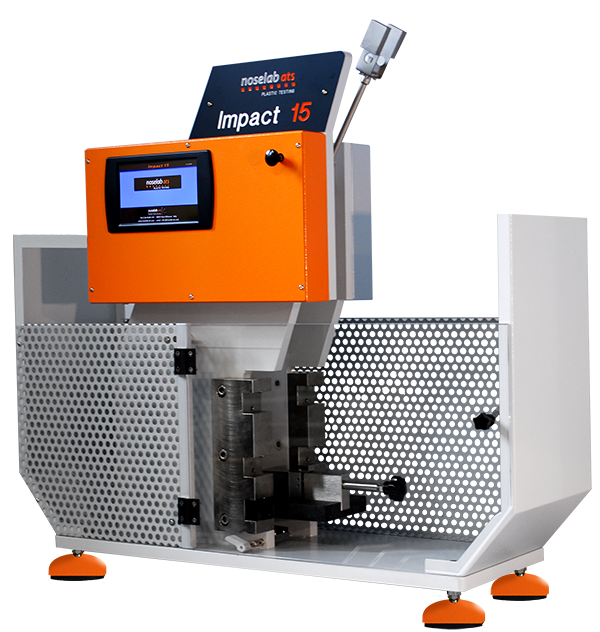

NOSELAB ATS IMPACT PENDULUM Impact Pendulum (50J, 200kg)

Structure which contains all electric and mechanical devices with metal guards and plexiglass door

Electronic crosswise leveling system

Centering system for Charpy specimens

Safety systems

Double “PULL” type hammer release

Side safety shield (polycarbonate)

Braking system

System slows down the descent of the hammer after the impact

User interface with 7-inch touch-screen display

To input test parameters and display the energy and the resilience values after the impact

Multilanguage data display and data settings

Auto-test functions when switching on and troubleshooting coding

Automatic display of the ascent angle and of both the potential energy and actual speed of the impact

Braking system to slow down the descent of the hammer after the impact

Storing up to thousand of tests

USB port for connection to PC

Dimensions: 980 × 265 × 810 h mm

Power supply: 230 V, single phase, 50/60 Hz; 0.1 kVA

Up to 50J approx. 200 kg.
