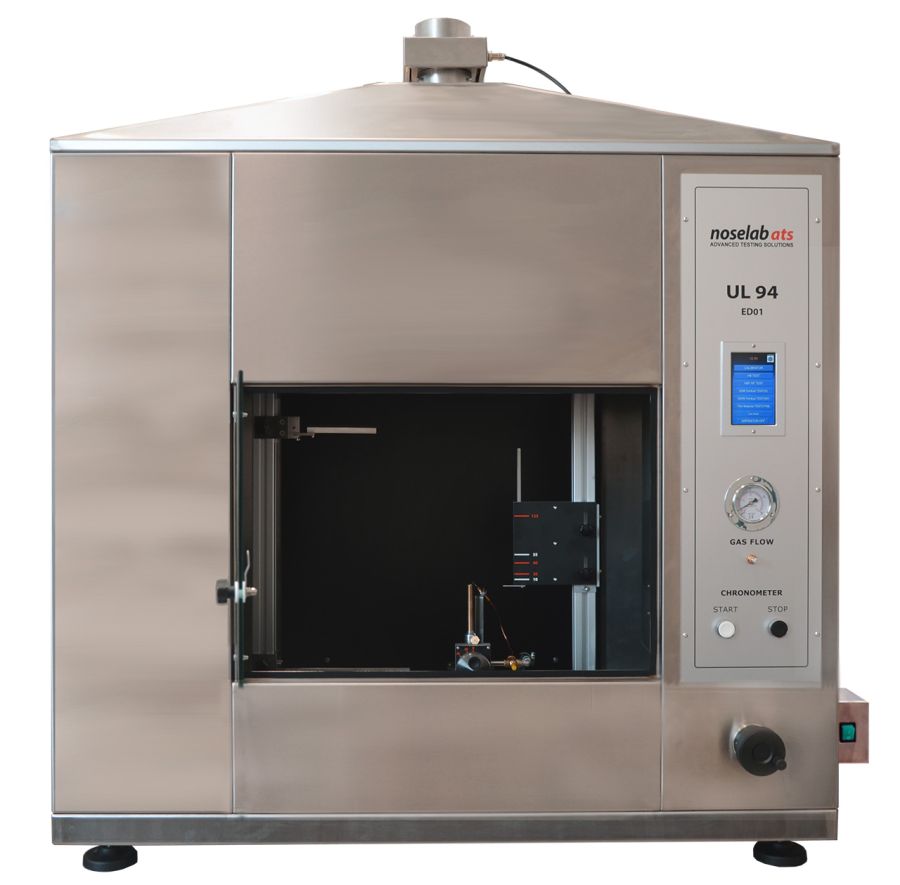

NOSELAB ATS ED01 Tests for Flammability of Plastic Materials

Technical Features

Test chamber: Bench-model with front doors for inspection and cleaning

Internal background: Black

Fume exhaust: Electro aspirator for smoke extraction after test, outlet diameter 100 mm

Flame position adjustment: Slide system regulated from outside

Gas feeding system: Methane gas panel complete with flow meter, tap and pressure gauge

Sample holder: Standards-compliant with adjustable sample position

Control panel: Touch screen for flame application timing, post-combustion time detection, flame ignition and flame temperature reading

Cabinet Dimensions

Useful volume: 1 cu.m (1200 × 800 × 1100 mm)

Overall dimensions: 1200 × 800 × 1600 mm

Net weight: 95 kg

Supply

Burner: According to ASTM D 5205

Thermocouples: Two thermocouples with copper block (5 mm and 9 mm)

Burner adjustment: Joints and clamps

Wire gauze: 20 mesh stainless steel wire gauze, approx. 125 mm

Specimen support: For test specimens

Mandrel: 12.7 mm Ø mandrel for specimen winding
