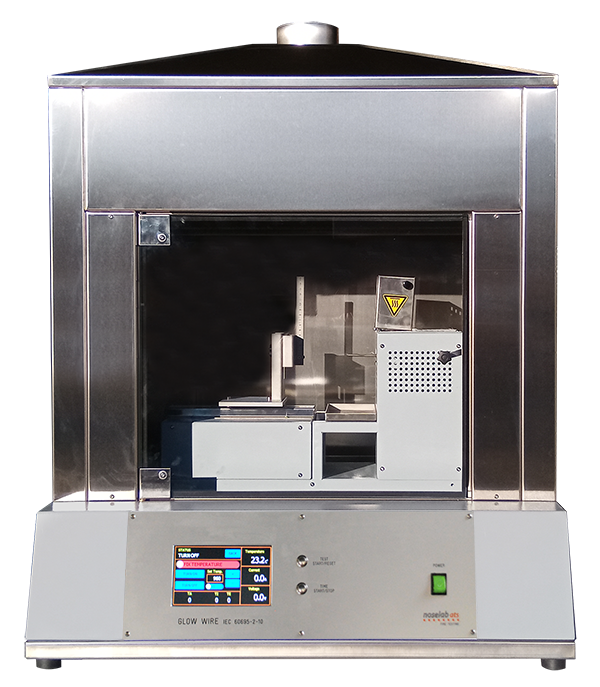

NOSELAB ATS EB05 Overheating Test Apparatus (960° ±15° C, 700 W)

Steel test chamber volume approx 0.5 cum with inner part painted in black to guarantee the required lux level

Safety glass

Upper part designed for connection to a fume exhaust system

Internal lighting

Automatic motor-operated carriage sliding system

Stainless steel sample holder mm 70x15x120

4 mm dia. NiCr Wire

Type K Thermocouple

Control board including

Touch screen Control Board which shows wire temperature, time of test and voltage

Programmable test sequence time

Start and stop push-buttons, warning lights

Collecting tray

Wood tablet and cotton paper

General

Overall Dimensions: mm 700 x 650 x 1100 h

Weight: 90 kg

Power consumption: 700 W

Maximum test temperature: 960 ±15° C

Power supply: 230V, 50Hz

Datasheet
