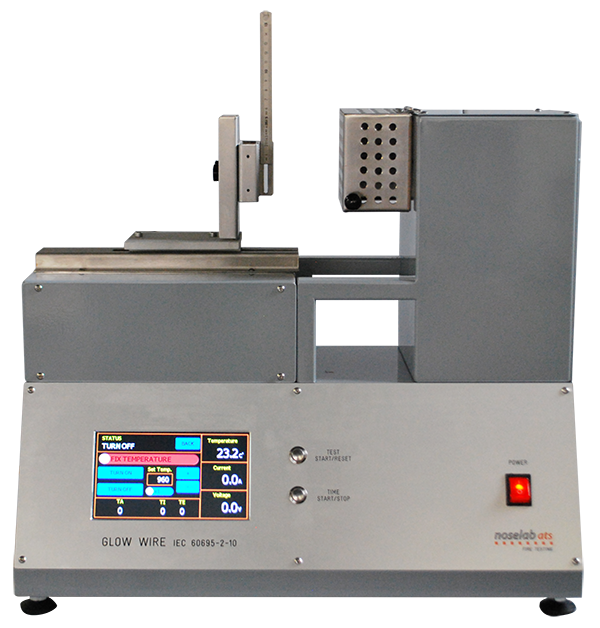

NOSELAB ATS EB03 Overheating Test Apparatus (960° ±15° C, 700W)

Motor driven carriage sliding system for the test-sample advancement

Stainless steel sample holder mm 70x15x120

Device with weights to apply the required contact pressure between the test specimen and the heating element

Type K thermocouple (mm1.0)

4 mm dia. NiCr wire

Touch screen control board showing both wire temperature, time of test and Voltage

Programmable test sequence time

Starting button for the motor-driven carriage

Collecting tray

Safety guard of the incandescent thread

Wood tablet and cotton paper

Apply the apparatus under a fume extraction hood or inside a laboratory hood equipped for handling.

Main features

Motor-driven carriage to move the specimen support at a speed range of 10 - 25 mm/sec

1 N ± 0.2 N pre-loaded contact force of the test specimen against the glowing wire

General

Overall Dimensions: mm 500 x 400 x 570 h

Weight: 32 kg

Power consumption: 700 W

Maximum test temperature: 960 ±15° C

Power supply: 230V, 50Hz
