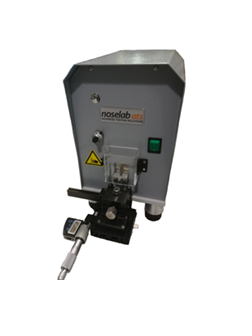

NOSELAB ATS EASY 2818 Izod Charpy Notcher (0–18 m/min)

Alternate vertical displacement of the knife: 30 mm

Linear speed of the notch: 0–18 m/min with electronic control

Height of the sample support: 25 mm

Width of the sample support: 15 mm

The notching area is suitable to accommodate up to 8 specimens of 3 mm thickness or up to 6 specimens of 4 mm thickness

Adjustment of the notch depth based on the residual section of the specimen (ISO 2818)

All-metal frame, fully painted

Power supply: 230V, single phase, 50/60 Hz; 0.5 kVA

Dimensions (W × D × H): 400 × 200 × 400 mm

Weight: 10 kg
