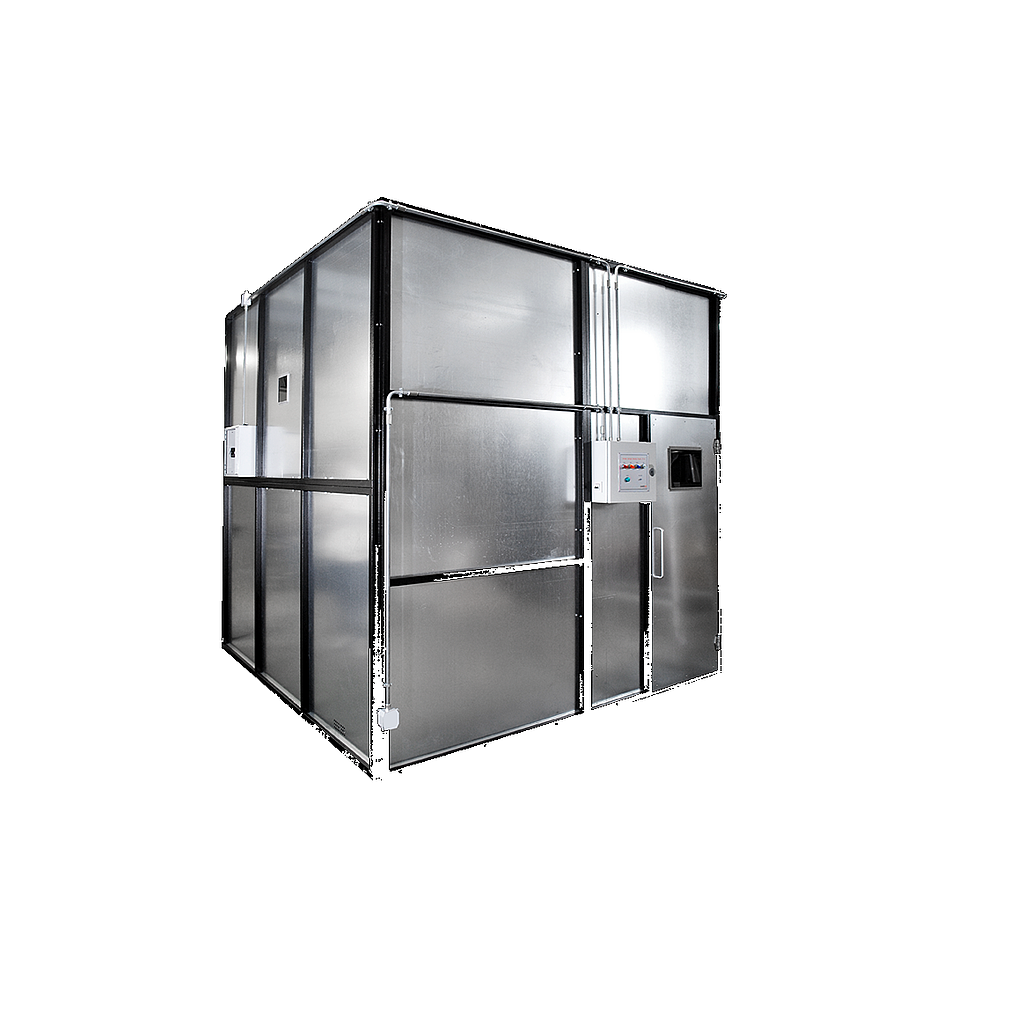

NOSELAB ATS CA05 27 cum Smoke density Chamber

The test chamber panels are easy to assemble, prepared with special fastening systems and equipped with the following accessories:

Glass window with darkening curtain, gaskets and locks on the door.

Two small tempered neutral glass windows (dim. 200x200mm) for opacimeter light beam passage.

Arc of a circle screen (1500x1000mm).

Stainless Steel Tray for combustible solution.

Stainless Steel Frames for clamping cables under testing.

n. 2 Thermocouples K type

Smoke aspirator system at test conclusion, consisting of a propeller fan of 1500 m3/h airflow with 0.5 CV - 6 poles motor, stop valve.

General:

• Dimensions: 300 x 300 x 300 h (cm), main system

• Net weight: kg 1600

• Gross weight: kg 2000 (wood cases)

• Power supply 230 V 50Hz single phase

Accessories:

• Portable Electronic Thermo anemometer to verify the fan throughput.

• Light meter - resolution 1 lux to verify the luminous flux not less than 2000 lumens
