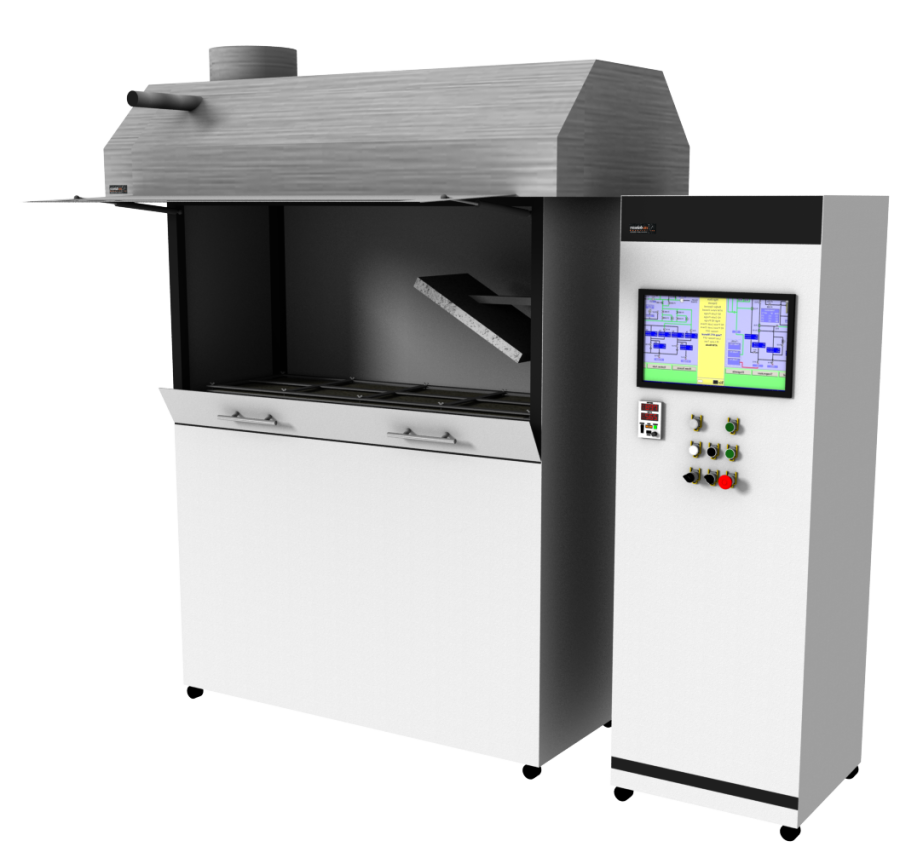

Technical Features
Test chamber: With calcium silicate lining, flap with fire resistant glazing, extractable mounting plate for sample holder, exhaust with light measurement system
Radiant panel: Gas fueled radiant panel
Burner system: Stainless steel row gas burner with pneumatic shifting option with ignition device, flame detector and check valve
Sample holder: Stainless steel insertion holder for easy sample positioning
Gas installation: With digital gas flow controllers, pressure controllers and magnetic valves
Exhaust hood: Stainless steel hood with smoke measurement ports
Measuring and control unit: Colour touchscreen, measuring and control modules and USB interface
Software: Data link acquisition and analysis software
Radiant heat measurement:
The distance burned until flame-out is reached is converted, by calibration, into an equivalent critical radiant flux in kW/m2
Radiant panel: Tiles are conducted to give a maximum critical radiant heat flux of 10.9 kW/m2, optionally extendable up to 25.0 kW/m2
Smoke measuring system:
Smoke measuring system according to DIN 50055 mounted on a separate frame at the exhaust stack
Supplies
Power supply: 230 V 50 Hz single phase
Fuel gas: Propane
Compressed air: Dry industrial air 2 atm
Configuration Including
Pyrometer: 1 to 9 µm sensitivity
Thermocouple: Type K
Heat flux meter: Schmidt Boelter heat flux meter (25 mm) 0 to 15 kW/m2
General
Dimensions: 60 × 200 × 200 h (mm)
Net weight: 110 kg
