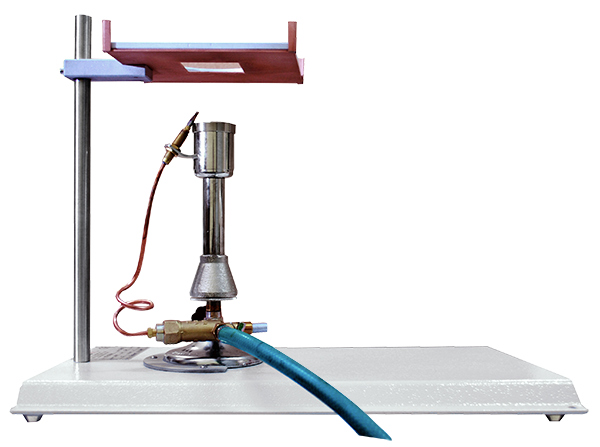

NOSELAB ATS AC06 Heat transfer determination

Support

Stainless steel shaft

Aluminum calorimeter support – 149 mm side

Copper specimen support – 150 mm side

Template for sample preparation

Meker burner for propane gas Ø38mm

Gas Propane supply assembly with pressure gauge, pressure regulator 0–1.5 Bar and adapter for gas cylinders

Calorimeter disk Ø40 mm with T-type thermocouple for connection to the TermoCronoTimer

TermoCronoTimer

Touch Screen device to display the required heating time and value of the copper disk subjected to the flame, according to the standard

Measuring, calibration and HTI reading modes

USB port for connection to PC

General

Outer dimensions 440 x 300 x 400h mm

Weight 7 kg

External power supply 230VAC, 50 Hz, 1A

Gas supply Propane

Software Data Link

Software to manage test reports

To store and modify data

Complete with USB cable for connection to PC (00100210)

Standards

ISO 9151

UNI EN 367
