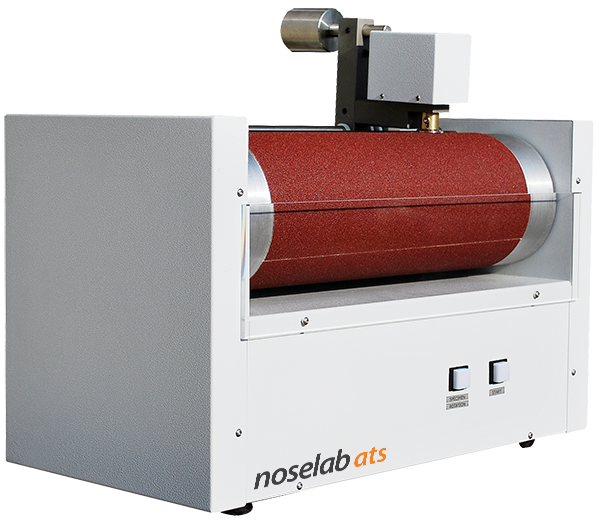

NOSELAB ATS ABRASION TESTER Abrasion Resistance Tester

Metal frame painted in epoxy

Equipped with a rolling support for abrading paper, 150 mm Ø, at 40 r.p.m. speed

Specimen holder mechanism based on an automatic system for lateral travel, equipped with a support for additional weight

Micrometric adjusting of calibration

Total travel of the specimen 40 meters

Counterweight to the reduction from 10 N to 5 N on audition

Supply includes

n.1 abrading paper to be calibrated

n.1 device for specimen rotation during the travel

n.1 5 N counterweight

n.1 calibrating device for the abrading paper (one piece)

Overall dimension 600x300x400h mm

Weight 20 kg (approx.)

Power supply 230V, 50Hz, single phase, 0.5kVA
