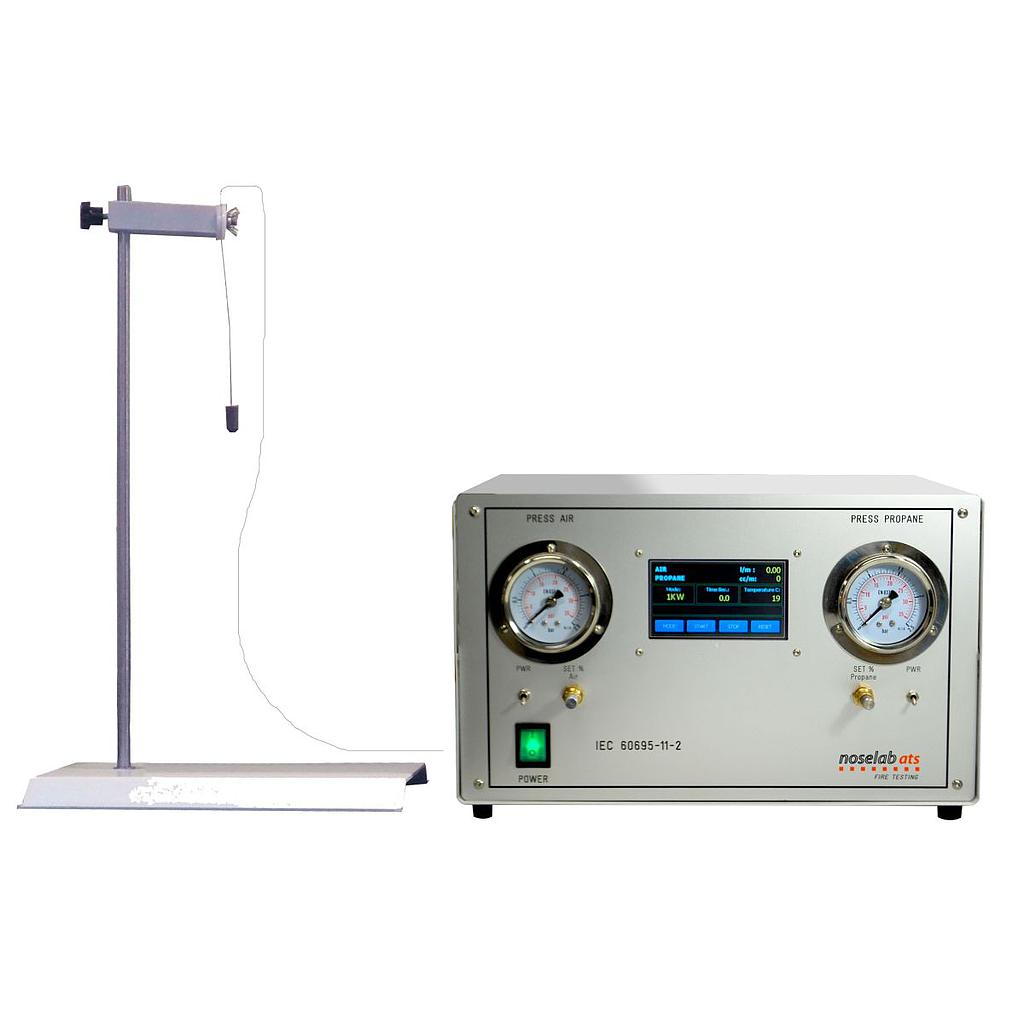

NOSELAB ATS AB04 Premixed Flame Apparatus for Cable Fire Resistance Tests (100 °C ~ +700 °C)

Controller

It contains the devices for mixing and adjust the combination of propane gas and air

Needle valve to regulate the gas flow

Electronic massive Flow meters type CMOSens

Air: range 0 – 20 NL/min for Nominal Flow 10 l/min at 23°C 0.1 MPa

Propane: range 0 – 3 NL/min for Nominal Flow 650 ml/min at 23°C 0.1 MPa

Accuracy: 0.05% FS

Precision: 0.3% FS (including offset, Nonlinearity, Hysteresis)

Touch LCD display backlit

Gas and Air Pressure gauges dia. 80 mm precision 1%

Automatic measure the time and the rising temperature of the copper block with 100 °C up to +700 °C

Accuracy: time 0.1 seconds

Temperature ± 0.5 °C

Safety Non-return

Burner

According to the Rule Specification IEC 60695-11-2 annex A, with two-position pedestal (V-45°)

Burner 1 kW

Height-adjustable support

For positioning the copper block at 95 mm over the burner

Thermocouple

0.5 mm diameter wire with copper block 9 mm diam, mass ± 0.05 g for the calibration of the flame

Supply requirements

Gas propane purity > 98%

Filtered air: dry and oil-free

230 V – 50 Hz – 30 W

Reference standards

IEC 60695-11-2

UNI EN 60695-11-2
