NOSELAB ATS AB01 Fire Resistance Test System for Electric Cables

Sample supporting system

n. 1 110 mm stainless steel rod having Ø 10 mm

n. 5 150 mm Ø rings + n. 2 supports

n. 2 double clamps + n. 2 supporting clamps

Gas burner ribbon type

500 mm long ribbon type propane gas burner with three lines of holes

Complete with Venturi mixer, support, safety igniter

Flame safety device with piezoelectric igniter

Temperature measurement device

n. 2 K-type stainless steel sheathed thermocouples 1.5 mm with differential reader

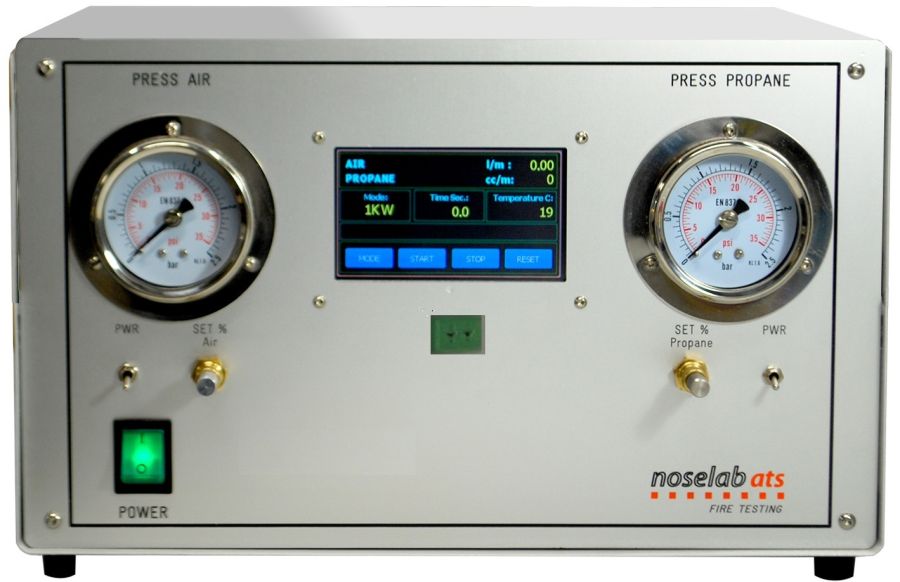

Control device for flow rate

Mass flowmeter for propane gas flow 5 l/min, precision ±0.25

Mass flowmeter for air flow 80 l/min, ±5

n. 2 pressure gauges suitable for measurements in the range 0 / 7.5 kPa

n. 2 air and gas flow adjusting valves

Temperature measure with averaging

It is thus recommended that a standard test chamber, i.e. the design of 27 m3 volume in accordance with IEC 61034-1, be used

Supplies

Power 230 V 50Hz single phase

Propane
