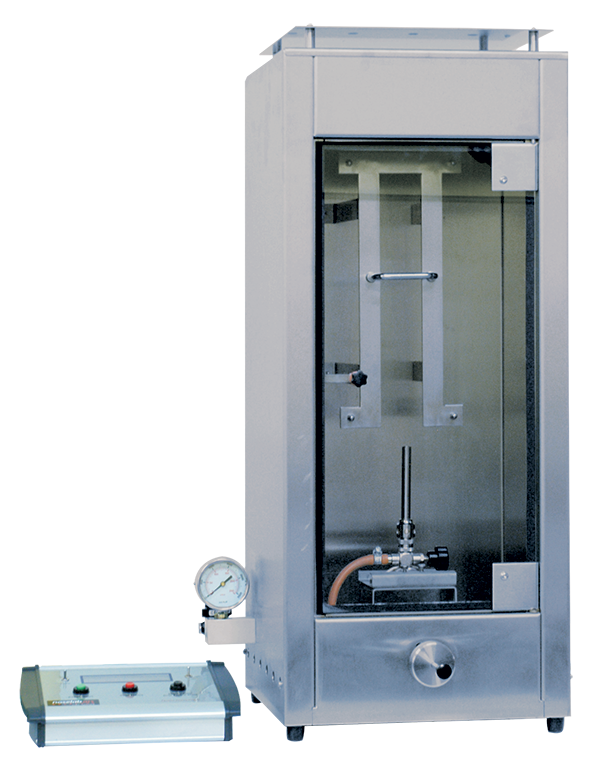

NOSELAB ATS AA05 Vertical Test Cabinet - Flammability test

Technical Features

AISI 304 stainless steel structure

Sledge for burner positioning

Safety glass door

Bunsen burner diameter 9.5 mm complete with safety valve

Pressure gauge

Burner positioning shaft

Tool for flame height measurement

330 × 140 mm specimen support for 305 × 75 mm specimens having thickness up to 25 mm

Drops collecting tray

K-type thermocouple for flame temperature detection to connect the digital control device

Digital TemoCronoTimer for detection of minimum flame temperature 850 °C

Digital TemoCronoTimer for 12 or 60 seconds exposure to flame

Digital TemoCronoTimer for flame duration on the specimen after the burner is withdrawn

Digital TemoCronoTimer for flame time of the drops

Recording of flame and glowing times after flame exposure with manual control

Dimensions 330 × 330 × 787 h mm

Weight 18 kg

Power supply 230 VAC 50 Hz single phase

Gas supply methane

Standards

ABD 0031

AITM 2.002

BSS 7230

FAR Part 25 Appendix F Part 1

FTM 191A method 5903

ASTM D6413
