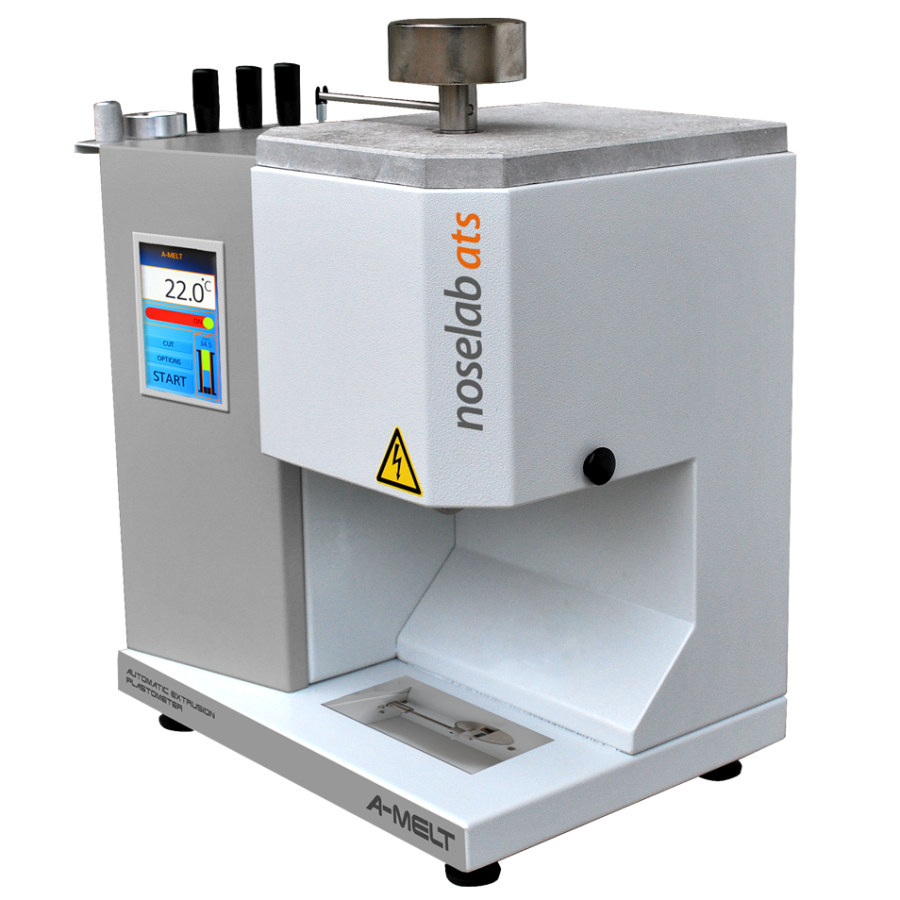

NOSELAB ATS A-MELT Melt Flow Index Tester (50 ~ 400°C)

Metal frame and case painted with epoxy resins

Built-in rack for accessories

5” TOUCH TFT digital screen, microprocessor controlled and resolution 0.1°C for temperature setting and data input

Heating system by dual resistance

Operating temperature range 50 to 400°C

Thermal stability within ±0.2°C in the testing area

Test chamber Ø 9.55 mm, made of steel (52/55 HRC)

Piston Ø 9.474 mm, height of the pressing part 6.35 mm, made of steel (60/62 HRC), overall weight 325 g, complete with weight support head and flag’s arm

Die internal Ø 2.095 mm, height 8 mm, made of steel (60/62 HRC)

The instrument is equipped with an electromechanical device for the cutting of the extruded material, controlled by timer which operates the blade either automatically (at preset intervals as per ASTM D1238) or operating manually

End of test mode moving (mm) or timed (sec)

The microprocessor acquires and processes the data and determines up to 50 acquisitions automatically, and the results MVR, MFR, Dev.STD

Set of 4 adjustable feet for instrument levelling, assembled

Control mirror, assembled

Standard Tools

Sample loading funnel

Pressing tool for compressing the material in the test chamber

Die cleaning tool

Test chamber cleaning tools (3 different shapes)

General

USB interface to PC

Power supply 230V, single phase, 50/60Hz, 0.5 kWA

Dimensions (WxDxH) mm 420x330x530

Weight approx. 30 kg

Datasheet
