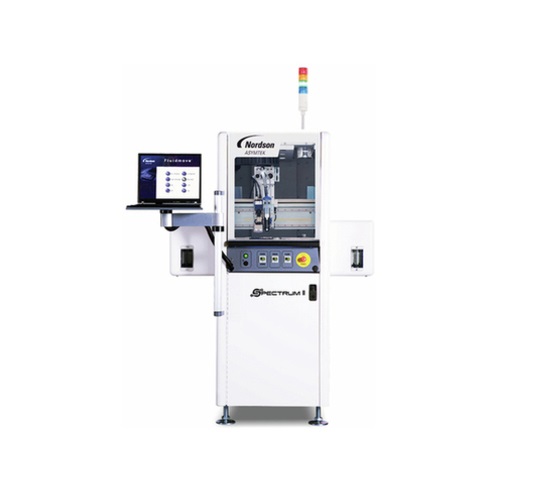

Nordson Spectrum II S2-900 Precision fluid dispensing system (1 m/s (40 in./s))

Specifications

Motion System

Z repeatability: ±15 µm (0.0006 in.), 3 sigma

X-Y repeatability: ±15 µm (0.0006 in.), 3 sigma

X-Y acceleration: 1 g peak

X-Y velocity: 1 m/s peak (40 in./s)

X-Y-Z encoder resolution: 1 µm

Single Applicator — Wet Dispensing Accuracy & Repeatability

Cp ≥ 1.0: ±35 µm (0.0016 in.)

Cpk ≥ 1.0: ±40 µm (0.0016 in.)

Z-gap Performance: Z-Gap Repeatability: ±15 µm (0.0006 in.), 3 sigma

Minimum Z-Gap Capability: 50 µm (0.002 in.)

Dispense Area (X-Y): 339 x 410 mm (13.3 x 16.1 in.)

Conveyor

Min. board/carrier width: 34 mm (1.3 in.)

Max. board/carrier thickness: 12 mm (0.5 in.)

Max. board/carrier length:

One station: 340 mm (13.4 in.)

Three stations: 320 mm (12.6 in.)

Min. board/carrier length: 25 mm (1.0 in.)

Max. board/carrier width:

Single lane: 535 mm (21.1 in.)

Dual lane: up to 228 mm (9.0 in.)

(configuration dependent)

Conveyor overboard clearance: 30 mm (1.2 in.) standard

Computer: Laptop

Software: Fluidmove® fluid dispensing software
