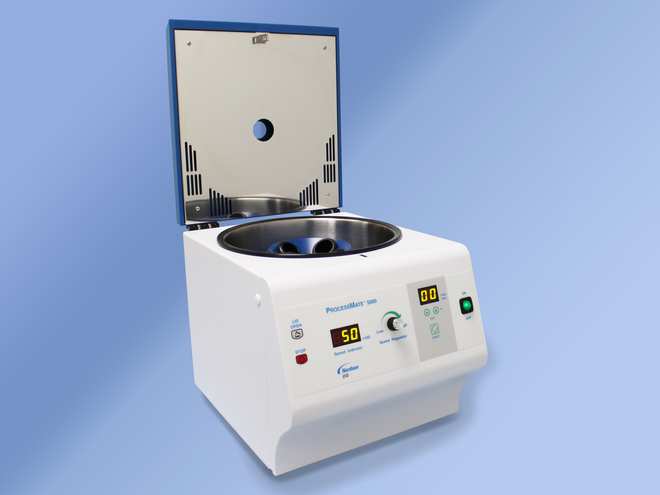

Nordson ProcessMate 5000 Universal Centrifuge (80 W)

Dimensions: 320W x 400D x 325H mm (12.6W x 15.7D x 12.7H")

Weight: 16.0 kg (35.2 lb), approx.

Speed range: 1,000–5,000 RPM adjustable*, LED display ; *depending on size of barrels and weight of contents

Timer: 2-digit, 99 min LED display

Chamber: Stainless steel

Motor: 80 W

Speed control: Microprocessor

Imbalance detection: Yes, alarm and brake

Error detection: Yes (4-error detection)

Brake: Automatic braking system

Safety interlocking lid: Yes

Lid open override device: Yes, manual

Safety shutout device: Yes

Over-heating alarm: Yes

Emergency stop: Yes

Power source: Multi-voltage 100–240V, 50/60Hz

Approvals: CE, UKCA, RoHS

Features and Benefits

• Improves process control and reduces rejected parts

• Spins up to (4) 3cc–30cc syringes

• Fixed angle rotor

• Lid locks for safety

• All-metal cabinet construction for safety

For use with

• 2-part Epoxies

• Frozen Epoxies

• RTVs

• Greases

• Various other fluids
