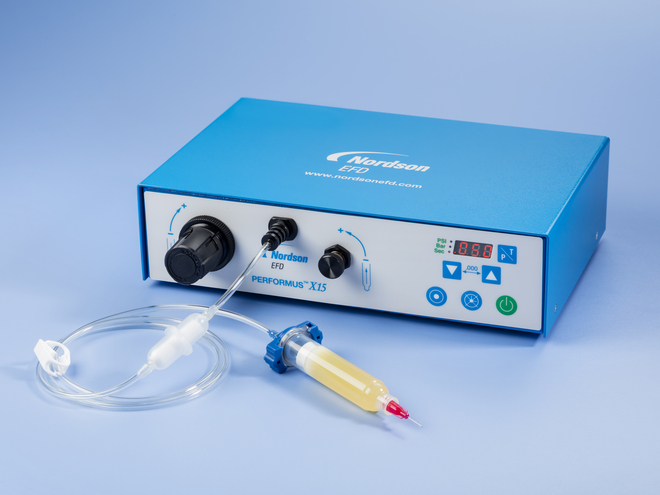

Nordson Performus X15 Dispenser (0-1 bar)

Cabinet size: 26.4W x 17.1D x 6.7H cm (10.38W x 6.75D x 2.62H")

Weight: 1.0 kg (2.2 lb)

Power adapter: AC input: 100–240 VAC (+/-10%), ~50/60Hz, 0.6A; DC output: 24 VDC @ 0.75A

Cycle rate: Exceeds 600 cycles per minute

Time range: 0–99.9 s

End-of-cycle feedback circuits: 5-24 VDC, 100 mA maximum

Cycle initiate: Foot pedal, finger switch, or 5–24 VDC signal

Input air pressure: 5.5–7.0 bar (80–100 psi)

Air output: 0–1.0 bar (0–15 psi)

Approvals: CE, UKCA, ETL, RoHS, WEEE, China RoHS
