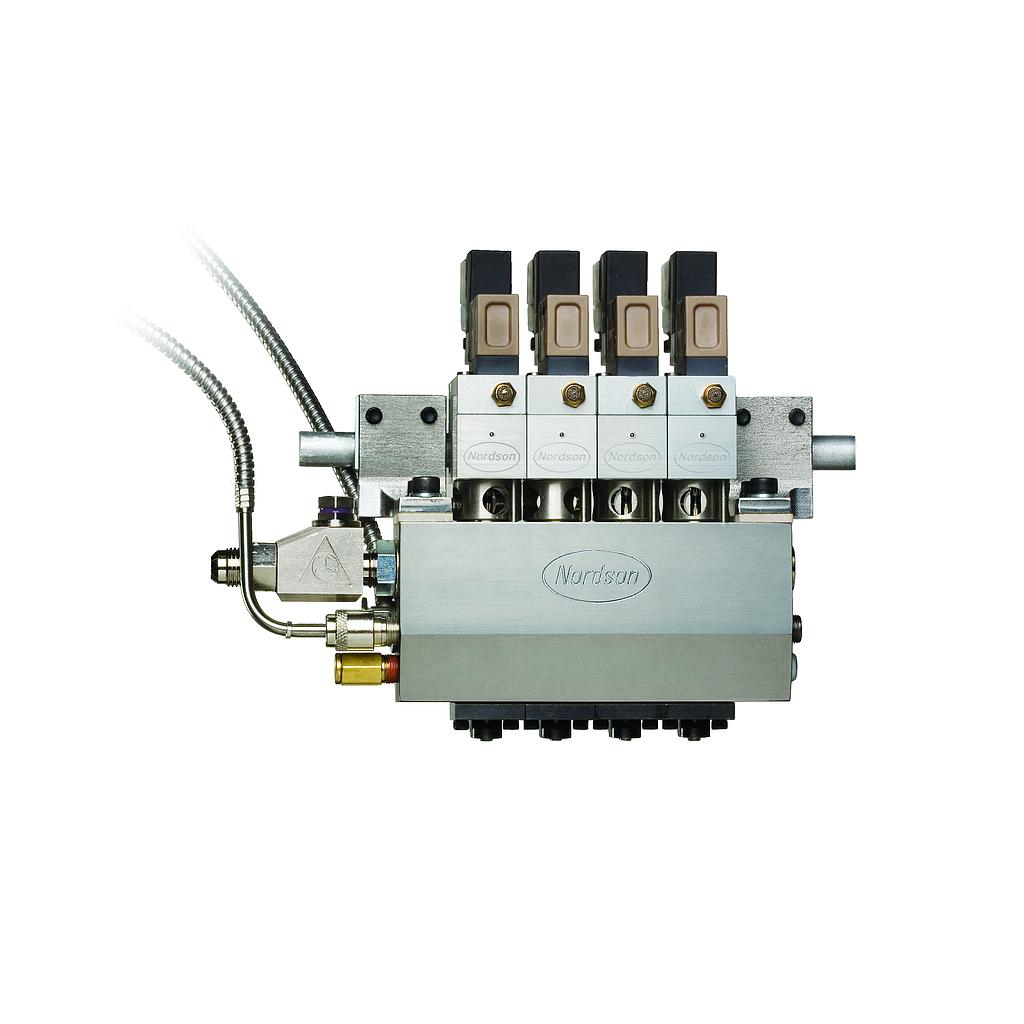

Nordson PatternJet Hot melt dispensing guns (1,300 psi; ~0.25-1.0 scfm)

Operating Temperature: 93-191° C (200-375° F)

Maximum Operating Hydraulic Pressure:

With module air pressure 60 bar (870 psi)

Without module air pressure 15 bar (218 psi)

System Hydraulic Pressure: 89.6 bar (1,300 psi) maximum

Module-actuating Air Pressure:

4 bar (58 psi) minimum

6 bar (87 psi) recommended

Air Consumption (per nozzle): ~7.1- 28.3 nlm (~0.25-1.0 scfm) for Summit or Controlled Fiberization nozzles

Temperature Sensors: Nickel 120 ohms only

Operating Voltage: 230 VAC 50/60Hz

Solenoid Control Voltage; 24 VDC

Adhesive Viscosity: 500-15,000 cps

Adhesive Pattern Capability: Continuous or intermittent

Cycles: Up to 9000 cycles/min (dependent on pressure & viscosity)
