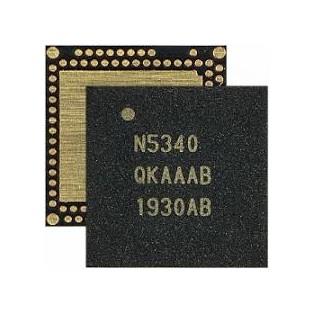

Nordic Semiconductor nRF5340-QKAA-R7 Bluetooth Dual-core Bluetooth 5.2 SoC supporting Bluetooth Low Energy, Bluetooth mesh, NFC, Thread, and Zigbee

Core: ARM Cortex M33

Width: 7 mm

Height: 0.85 mm

Length: 7 mm

Technology: Si

Sensitivity: - 98 dBm

Output Power: 3 dBm

Data RAM Size: 64 kB, 512 kB

Data RAM Type: RAM

ADC Resolution: 12 bit

Interface Type: I2C, SPI, UART

Mounting Style: SMD/SMT

Number of I/Os: 48 I/O

Development Kit: nRF5340-PREVIEW-DK

Number of Timers: 3 x 32 bit

Maximum Data Rate: 2 Mbps

Moisture Sensitive: Yes

Operating Frequency: 2.4 GHz

Program Memory Size: 256 kB, 1 MB

Program Memory Type: Flash

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.7 V

Number of ADC Channels: 8 Channel

Maximum Clock Frequency: 64 MHz, 128 MHz

Supply Current Receiving: 2.6 mA

Supply Current Transmitting: 3.2 mA

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
