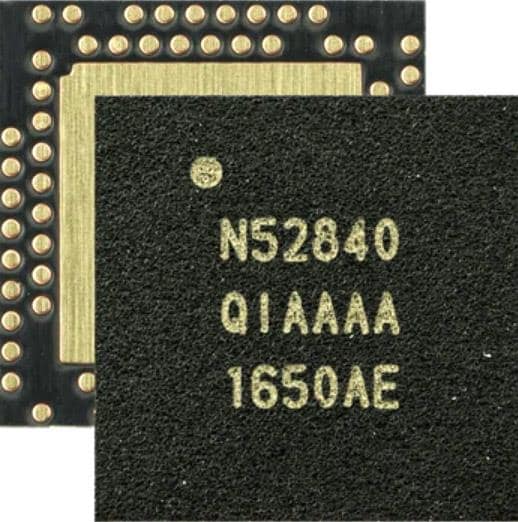

Nordic Semiconductor nRF52840-QFAA-R7 BLE 5.3, Bluetooth Mesh, NFC, Thread, Zigbee Multiprotocol Bluetooth 5.3 SoC supporting Bluetooth Low Energy, Bluetooth mesh, NFC, Thread and Zigbee

Core: ARM Cortex M4

Technology: Si

Sensitivity: - 89 dBm

Data RAM Size: 256 kB

Data RAM Type: SRAM

Data Bus Width: 32 bit

Interface Type: I2C, SPI, UART

Mounting Style: SMD/SMT

Maximum Data Rate: 2 Mbps

Program Memory Size: 1 MB

Program Memory Type: Flash

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.7 V

Maximum Clock Frequency: 64 MHz
