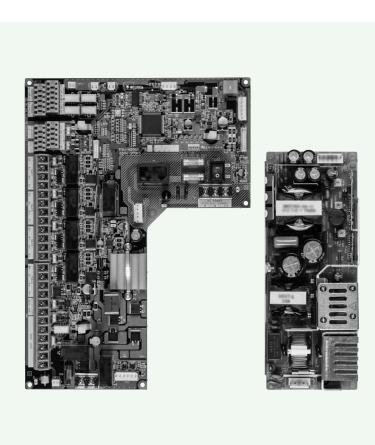

NOHMI PCA-N3060-PSU Power Supply Unit

AC input rated voltage: 110 to240 VAC

AC input voltage frequency: 50/60 Hz

Ambient operating temperature range: 0 to 49 °C (32 to 120 °F)

AC input power: Max. 2.0 A at 120 VAC, Max. 1.0 A at 240 VAC

Maximum 24 VDC standby current: 80 mA (not including output load)

Maximum 24 VDC alarm current: 210 mA (not including output load)

NAC output current: Max. 3.0 A per circuit (*)

NAC output wiring style: NFPA Class A (Style Z) or Class B (Style Y)

Auxiliary power maximum output current: 1.0 A at 24 VDC

Contact (Relay) output ratings: 24 VDC/2.0 A, 125 VAC/0.5 A

Maximum battery charging current: 2.0 A

Standby battery capacity range: 12 to 65 AH

Battery fuse capacity: 15 A

Remote annunciator wiring style: NFPA Class B (Style 4)

Maximum remote annunciator: 30 units

Maximum wiring length for remote annunciator: 1.2 km (with 40 2 and 0.4 µF)

Communication for remote annunciator: RS-485

Dimensions:

318 mm (12.52") (H) x 230 mm (9.06")(W) x 34 mm (1.34")(D) (Main Power Supply Unit only)

222 mm (8.74") (H) x 85 mm (3.35") (W) x 40.5 mm (1.59")(D) (AC/DC Switching Power Supply Unit only)
