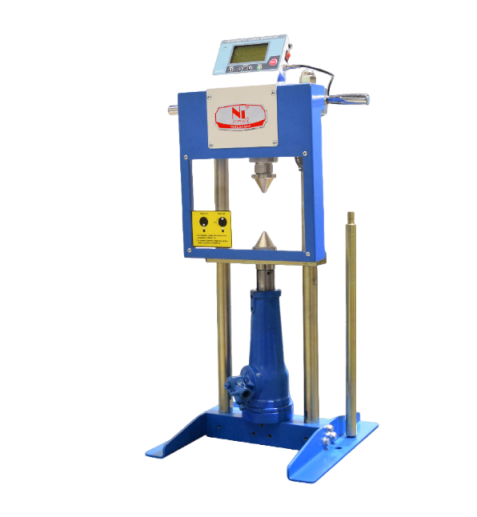

NL Scientific NL 1012 X / 006N Point Load Tester (50 kN x 0.001 kN, 90 mm)

Max. Capacity: 50 kN x 0.001 kN Sensitivity

Max. Specimen Test: 90 mm Dia.

Power: 1.8 Ah Rechargeable with AC 220 V

Result Storage: 50 Test Results

Accuracy & Repeatability: ≤1.0 % F.S

Sensor-Rated Carrying Capacity: 50 kN

Piston Diameter: 32 dia. mm

Force Measurement Error: ≤1% F.S

Working Temperature: -20 ~ 45°C

Product Dimension: 450(L) x 350(W) x 800(H) mm

Packing Dimension: 500(L) x 420(W) x 860(H) mm

Approx. Weight: 34 kg

Packing Weight: 47 kg

Unit Consists Of:

50 kN S Type Load Cell c/w Cable - 1 Unit

Digital Load Display - 1 Unit

Measuring Guide Plate - 1 no.

Conical Cone Set (Top & Bottom) - 1 Set.

Safety Cover - 1 Pc.

Power Charger - 1 no.

1 Copy of Manual Instruction

Datasheet
