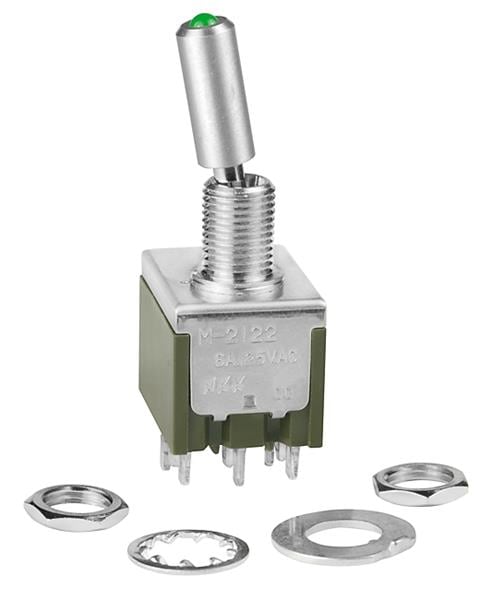

NKK Switches M2122LFW01 Miniature toggles DPDT ON-ON GRN ISO
Life: 25000 Cycle
Color: Multi Color
Actuator: Bat
Lamp Type: LED
Illuminated: Illuminated
Unit Weight: 17.513 g
Bushing Size: 1/4-40
Contact Form: DPDT
REACH - SVHC: Details
Terminal Seal: Epoxy
Current Rating: 3 A, 6 A
Mounting Angle: Vertical
Mounting Style: Panel Mount
Contact Plating: Silver
Switch Function: ON - ON
Contact Material: Silver
Housing Material: Brass
Termination Style: Solder Lug
Voltage Rating AC: 125 VAC
Voltage Rating DC: 30 VDC
Illumination Color: Green
Flammability Rating: UL 94 V-0
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 30 C
