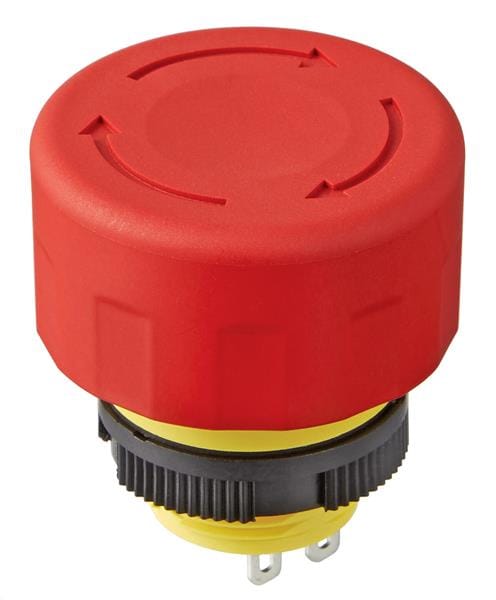

NKK Switches FF0116BACEEA01 Sealed SWITCH PUSHBUTTON
ManufacturerNKK Switches(View more products from this manufacturer)
ModelFF0116BACEEA01
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Life: 100000 Cycle
Color: Yellow
Height: 30.6 mm
Actuator: Plunger
IP Rating: IP65
Illuminated: Non-Illuminated
Contact Form: SPST
Handle Width: 30 mm
Panel Cutout: 16.2 mm
Current Rating: 500 mA
Mounting Style: Panel Mount
Actuator Length: 25 mm
Contact Plating: Gold
Switch Function: ON - OFF
Housing Material: Polyamide (PA)
Actuator Material: Polybutylene Terephthalate (PBT)
Termination Style: Solder Lug
Voltage Rating DC: 24 VDC
Maximum Operating Temperature: + 60 C
Minimum Operating Temperature: - 25 C
