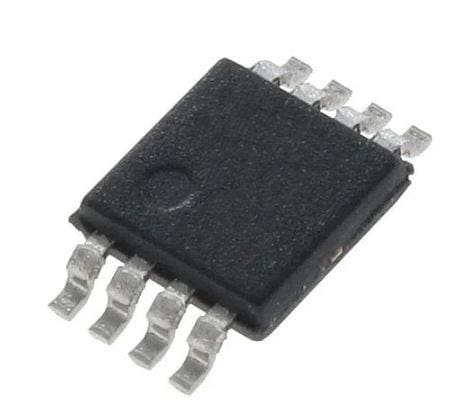

Nisshinbo NL6012AFAE2D CMOS Low Power Operational Amplifiers Low power, Zero-Drift, High EMC Performance Rail-to-Rail I/O, Operational Amplifier

Shutdown: Shutdown

Input Type: Rail-to-Rail

Technology: Si

Output Type: Rail-to-Rail

Amplifier Type: Zero-Drift

Mounting Style: SMD/SMT

SR - Slew Rate: 110 mV/us

Number of Channels: 2 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.1 V

Ib - Input Bias Current: 200 pA

Operating Supply Current: 25 uA

Ios - Input Offset Current: 60 pA

Output Current per Channel: 17 mA

Vos - Input Offset Voltage: 2 uV

GBP - Gain Bandwidth Product: 260 kHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

In - Input Noise Current Density: 60 nV/sqrt Hz

en - Input Voltage Noise Density: 60 nV/sqrt Hz

PSRR - Power Supply Rejection Ratio: 120 dB
