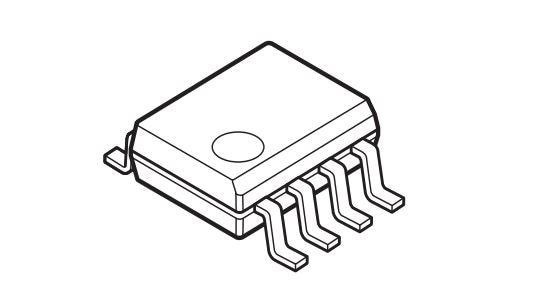

Nisshinbo NJMOP177GE Precision Amplifiers Prec Op Amp 60uV 115dB 126dB 1.1MHz

Shutdown: No Shutdown

Mounting Style: SMD/SMT

SR - Slew Rate: 300 mV/us

Voltage Gain dB: 142 dB

Number of Channels: 1 Channel

Supply Voltage - Max: 18 V

Supply Voltage - Min: 3 V

Pd - Power Dissipation: 950 mW

Ib - Input Bias Current: 2.8 nA

Operating Supply Current: 1.6 mA

Vcm - Common Mode Voltage: 14 V

Ios - Input Offset Current: 300 pA

Vos - Input Offset Voltage: 20 uV

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

CMRR - Common Mode Rejection Ratio: 140 dB
