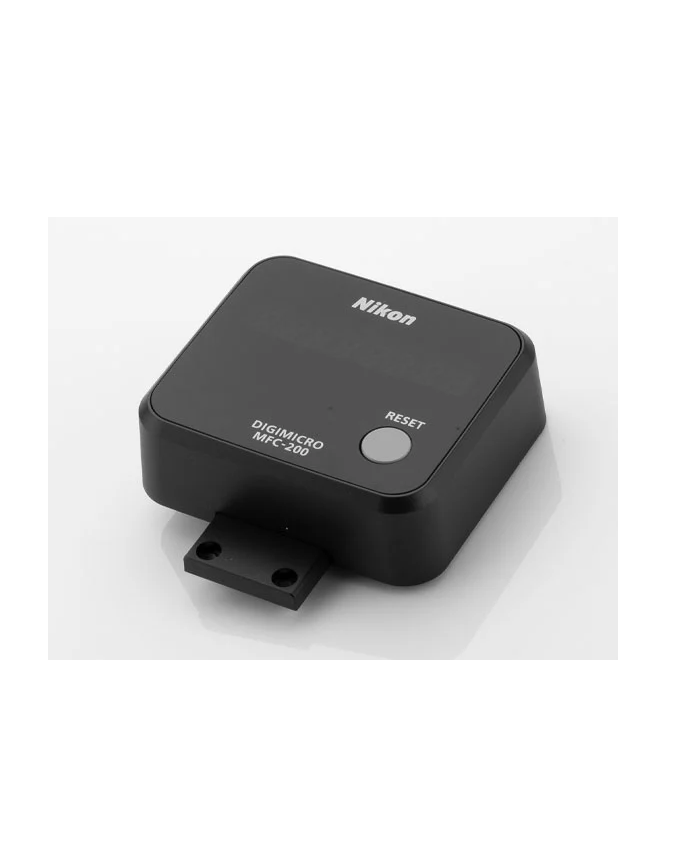

NIKON MFC-200 Counter

Display: 7-segment LED (green); 8 digits (including minus [-] sign); zero blanking, floating minus sign

Minimum displayed value: 0.1 µm (can be switched to 0.5 µm or 1 µm)

Functions

Reset

Error alarm (overspeed, etc.)

Compatible with Mitutoyo Corporation measurement data input units (sold separately)

Input power supply: Dedicated AC adapter (12V 5A)

Ambient temperature:

Operating temperature range 0 deg * C 40 deg * C

Storage temperature range - 20 deg * C to 60 deg * C

Compatible models: MF-1001, MF-501

Dimensions (mm): 80(W) * 84.3(H) * 25.5 (including 32.2mm connector) (D) mm

Weight: Approx. 95 g

Datasheet
