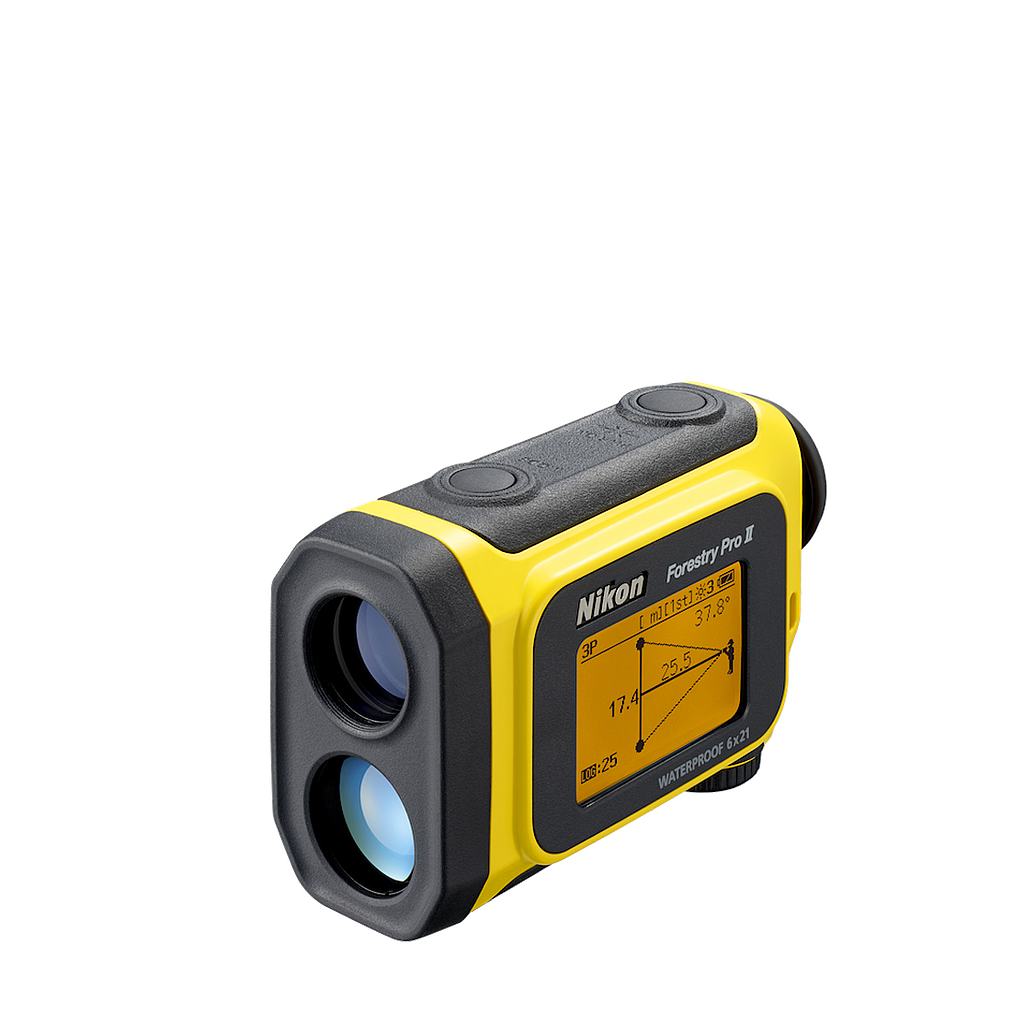

NIKON Forestry Pro II Laser Rangefinder (8-1,750 yd./25-5,250 ft.)

- Measurement range:

Distance: 7.5-1,600m/8-1,750 yd./25-5,250 ft.

Angle: ±89°

- Maximum measurement distance (tree)*: 1,100m/1,200 yd./3,600 ft.

- Distance display:

[Internal Display]

Act (Actual Distance):

Main-indicator: every 0.1m/yd./ft.

Sub-indicator:

every 0.1m/yd./ft. (shorter than 999.9m/yd./ft.)

every 1m/yd./ft. (1000.0 m/yd./ft. and over)

Hor (Horizontal Distance) and Hgt (Height): every 0.1m/yd./ft.

Ang (Angle): every 0.1°

[External Display]

Act (Actual Distance), Hor (Horizontal Distance) and Hgt (Height): every 0.1m/yd./ft.

Ang (Angle): every 0.1°

- Accuracy:

±0.3 m/±0.3 yd./±0.9 ft (shorter than 1,000 m/1,000 yd./3,280 ft)

±1.0 m/±1.0 yd./±3.0 ft (1,000 m/1,000 yd./3,280 ft and over)

Magnification (x): 6

Effective objective diameter (mm): 21

Actual field of view (°): 7.5

Exit pupil (mm): 3.5

Eye relief (mm): 18.0

- Dimensions (LxHxW) (mm/inch): 110 x 74 x 42/4.3 x 2.9 x 1.7

- Weight (excluding battery) (g/oz): 170/6.0

- Power source:

CR2 lithium battery x 1 (DC 3V)

Auto power shut-off (after approx. 8 sec. unoperated)

- Laser classification:

IEC60825-1: Class 1M/Laser Product

FDA/21 CFR Part 1040.10: Class I Laser Product

- Electromagnetic compatibility: FCC Part15 SubPartB class B, EU: EMC directive, AS/NZS, VCCI classB, CU TR 020

- Environment: RoHS, WEEE
