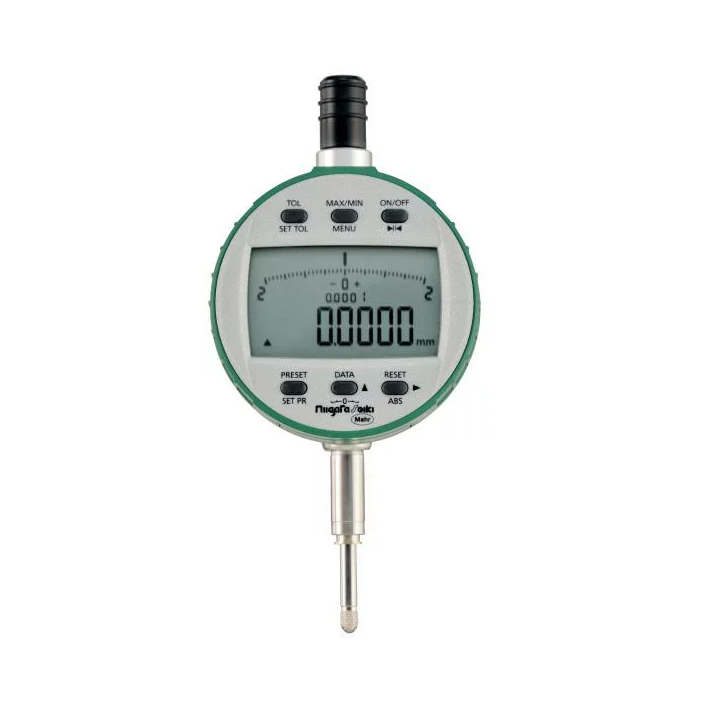

Niigata Seiki DEI-252MW Digital S Line Indicator (25mm; 0.0005mm; 2μm)

Material:

+ Stem, spindle: stainless steel

+ Stylus tip: steel

Type: Standard

Measurement range (mm): 25

Minimum reading (mm): 0.0005

Minimum display value (mm): 0.01/ 0.005/ 0.002/ 0.001/ 0.0005

Return error (μm): 2

Measuring force (N): 1.5 or less

Indication error for the entire measurement range (μm): 4

Repeat accuracy (μm): 1

Power supply: CR2450 (included for testing)

Body dimensions (WxHxD) (mm): 60.5x153.4x35.5

Body mass: 140g

Accessories: CR2450
