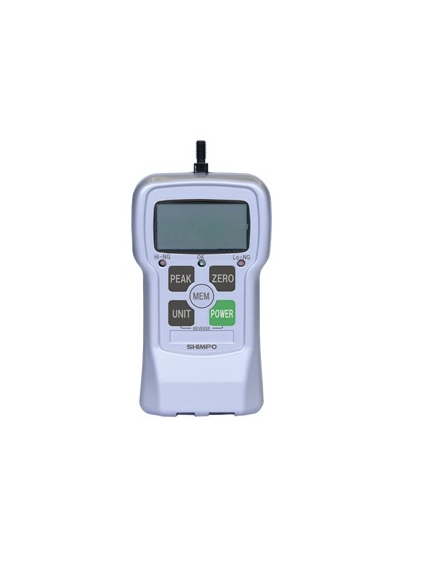

NIDEC-SHIMPO FGPX-50 Digital Force Gauges (±500.0N, 0.1N)

Rated capacity (R.C.): ±500.0N (±50.00kg)

Available display range: ±500.0N (±50.00kg)

Display resolution: 0.1N/0.01kg

Unit: Unit change between N and kg (g) (reverse display available)

Measurement method: Normal measurement, plus peak, minus peak

Display cycle: 1 time/sec, 2 times/sec, 3 times/sec, 5 times/sec, 10 times/sec, 20 times/sec

Sampling cycle: 1000 times/sec

Accuracy: ±0.2%R.C. and ±1/2digit (at 23°C) N

Display: LCD Signed 4-digit display (Font height: 12mm) Judgment LEDs (HI_NG, OK, Lo_NG) 3 pieces

Overload capacity: 150%R.C.

Comparator function: Judges Hi_NG, OK, and Lo_NG, and outputs using the judgment LEDs and output signals

Communications: [USB]  (PCs can communicate with the unit using the specialized communication software.(USB cable optional)

[RS-232C] (PCs can commu unit using the specialized communication commands (RS-232 cable optional )

Analog: ±1V (Outputs for the available range of display), accuracy ±50mV, 12bitD/A converter method Output updates: 1000 times/sec, zero setting available, load resistance 10kΩ or more

Output: [Overload] PUSH, PULL Open collector output (max. DC30V/5mA) (Comparator] HI, OK, LO Open collector output (max. DC30V/5mA)

Input signal: ZERO (external zero setting), HOLD (external hold), PEAK (peak mode setting)

Power: built-in NiMH battery (rechargeable)

Battery operating time: Approx. 10 hours from full charge

Charging time: Max. 17 hours (Automatically ends when fully charged)

Auto power off function: 10 min (The unit can be used while connected to the AC adapter), this function can be disabled.

Memory function: Continuous memory 1000 sets/Single memory 100 sets/Standard memory 50 sets (can be switched between the three memory modes) Equipped with statistics function (max., min., peak, average, standard deviation)

Operating temperature (humidity) range: Temperature]0 to 40°C (No condensation) [Humidity 35 to 85%RH (No condensation)

Accessories: Measurement adapters (6 types)
