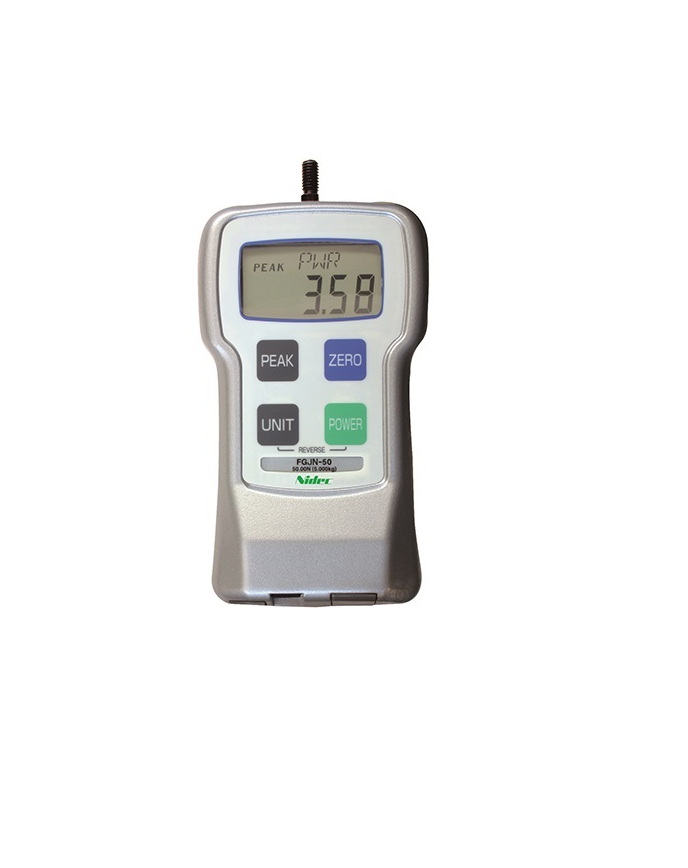

NIDEC-SHIMPO FGJN-50 Digital Force Gauges (0-500N)

Rated capacity (R.C): ±500.0N (±50.00kg)

Available display range: ±500.0N, ±50.00kg

Display resolution: 0.1N/0.01kg

Unit: Unit change between N and kg (reverse display available)

Measurement method: Normal measurement, plus peak measurement, minus peak measurement

Display cycle: 1 time/sec, 2 times/sec, 3 times/sec, 5 times/sec, 10 times/sec, 20 times/sec

Sampling cycle: 1000 times/sec

Accuracy: ±0.3%R.C. and ±1/2digit (at 23ºC)

Temperature effect: Gain: ±0.03%/LOAD/C, Zero: ±0.02%/R.C./C (Zero point drift can be canceled using the tracking function)

Overload capacity: 200%R.C

Tracking function: Provided (can be switched ON/OFF)

Auto power off function: 10 min (The unit can be used while connected to the AC adapter), or OFF
