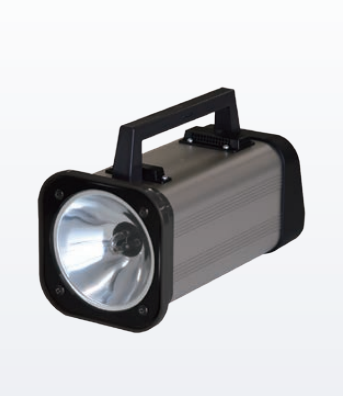

NIDEC-SHIMPO DT-3015N Digital Stroboscopes (40.0~35,000 fpm)

Flashing Range: 40.0 - 35,000 fpm (flashes per minute)

Accuracy: ±0.05 % of reading

Resolution:

30.0 to 5000.0 : 0.1 fpm

5001.0 to 8000.0:  0.2 fpm

8001.0 to 10000.0 : 0.5 fpm

10001.0 to 35000.0 : 1.0 fpm

Lux Rating:

8" (20 cm) Distance = 1950 lx @ 1500 fpm, 2000 lx @ 6000 fpm with 8" (203 mm) irradiation diameter.

20" (50 cm) Distance = 725 lx @ 1500 fpm, 850 lx @ 6000 fpm with 12" (305 mm) irradiation diameter.

Lamp Lifetime: Typ.1200 hours at 1500 fpm

Display: 6-digit, 7 segment red LED

Flash Duration: 30 μsec

Phase Shift: 0 to 359˚ set by 0.1˚ resolution; 0.00 to 999.99 msec set by 0.01 msec resolution, 1000.0 to 1994.4 msec set by 0.1 msec resolution

Power Supply: 100 to 240 VAC 50/60Hz (included)

Battery: NiMH battery- Approximate 2 hour time to full charge

Battery Life: Approx. 3 hours (when the emission count is 1500 FPM)

Input Signal: H level: 2.5 – 12 V; L level: 0 – 0.5 V Pulse width : 50 µs or more Input impedance : 10 kΩ or more

Input Signal Range: 27 to 35,020 fpm (1 fpm resolution) with available delay setting in degree or msec

Sensor Power Supply: DC 12 VDC 40 mA

Temperature Limits: 32 to 104°F (0 to 40°C)

Humidity Limits: 35 to 85% RH (Non- condensing)

Product Weight: 4.2 lbs (1.9 kg)
