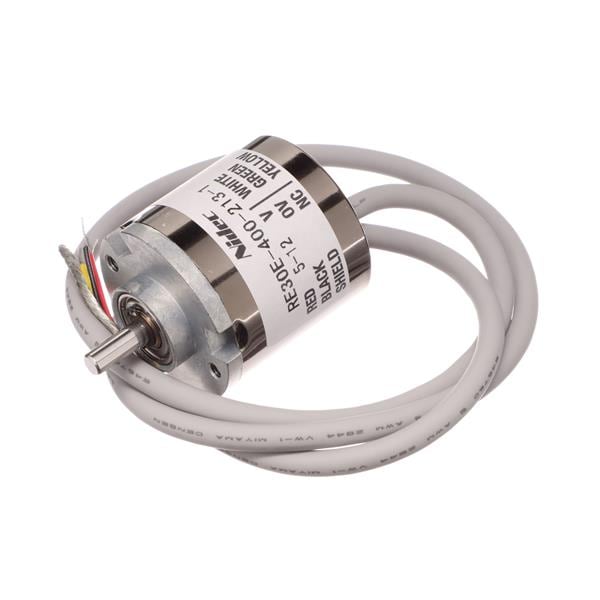

Nidec Components RE30E-400-213-1 Incremental 400 P/R resolution, sensing optical, square wave, 30mm diameter, wire leads

IP Rating: IP40

Resolution: 400 PPR

Shaft Type: D / Flatted

Technology: Optical

Output Type: Quadrature with Index

Unit Weight: 67.700 g

With Switch: Without Switch

Cable Length: 500 mm

Shaft Length: 10 mm

Mounting Style: Panel Mount

Shaft Diameter: 4 mm

Size / Dimension: 30 mm x 30 mm

Number of Detents: No Detent

Termination Style: Wire Leads

Number of Channels: 2 Channel

Operating Supply Voltage: 5 VDC to 12 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
