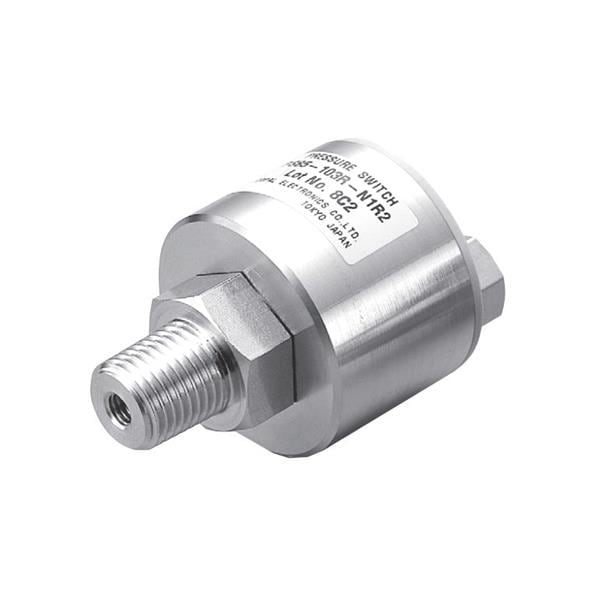

Nidec Components PS85-102A-N2R2 Pressure Switches 0 ~ 100 kPa, gauge absolute version, switch output NPN open collector, corrosive gases/liquids, G 3/8 with flash diaphragm pressure port, cable lead

Length: 27 mm

Accuracy: 3 %

Diameter: 35.2 mm

IP Rating: IP65

Port Size: R 1/4 in - M5 Female

Unit Weight: 180 g

Pressure Port: Port

Pressure Type: Absolute

Operating Pressure: 0 kPa to 100 kPa

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10.8 VDC

Operating Supply Current: 20 mA

Operating Supply Voltage: 10.8 VDC to 30 VDC

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 20 C
