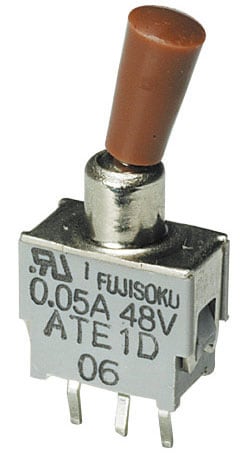

Nidec Components ATE2E-2M3-10-Z Subminiature Toggle Switch DPDT, ON-OFF-ON, 6mm toggle, 4mm smooth bushing, straight PC terminals, .1" between terminal rows, 50mA @ 60V AC/DC, washable
ModelATE2E-2M3-10-Z
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Life: 50000 Cycle
Actuator: Bat
Compliance: UL
Illuminated: Non-Illuminated
Contact Form: DPDT
Power Rating: 0.4 VA
Terminal Seal: Sealed
Actuator Style: Round
Current Rating: 50 mA
Mounting Style: PCB Mount
Actuator Length: 6 mm
Contact Plating: Gold
Switch Function: ON - OFF - ON
Termination Style: Solder Pin
Voltage Rating AC: 48 VAC
Voltage Rating DC: 48 VDC
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 20 C
